| MS593-20S | |
|---|---|
|

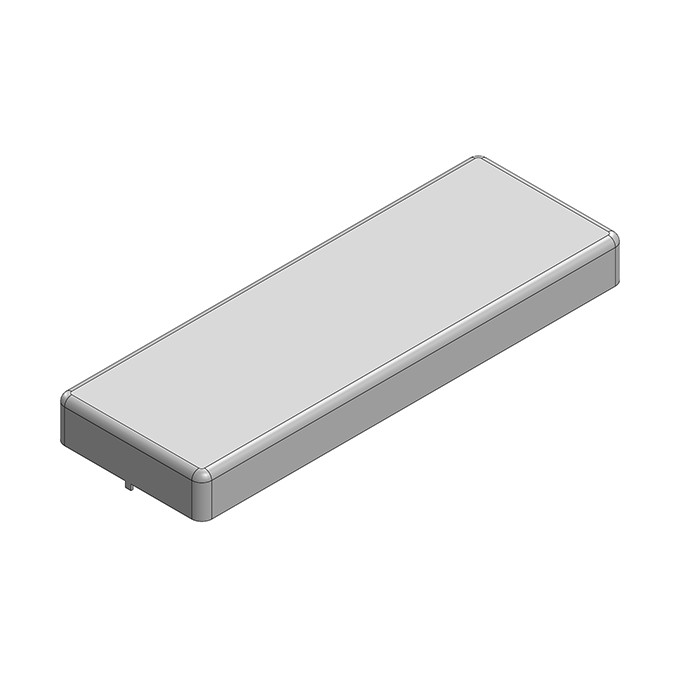

59.3 x 20.6 x 5.7mm One-piece Drawn-Seamless RF Shield / EMI Shield
|
MS593-20S |
|
|---|---|
|
59.3 x 20.6 x 5.7mm One-piece Drawn-Seamless RF Shield / EMI Shield
|
|
| Item Configuration | 1-piece EMI/RFI Shield |
| Item Length | 59.3 mm |
| Item Width | 20.6 mm |
| Item Height | 5.7 mm |
| Ventilation | Non-Vented |
| Mounting Type | SMD/SMT Soldering |
| Raw Material | Tin-Steel (CRS) |
| Packaging | Tray |
| RoHS Compliance |
|
| COO | IL (Israel) |
| Documents & Media |
|---|
| Downloads & Certificates |
| Storage & Handling |
| MS Catalog |
Global Product Availability
Select..
- Octopart
- FindChips
Optional Shield Configurations
-

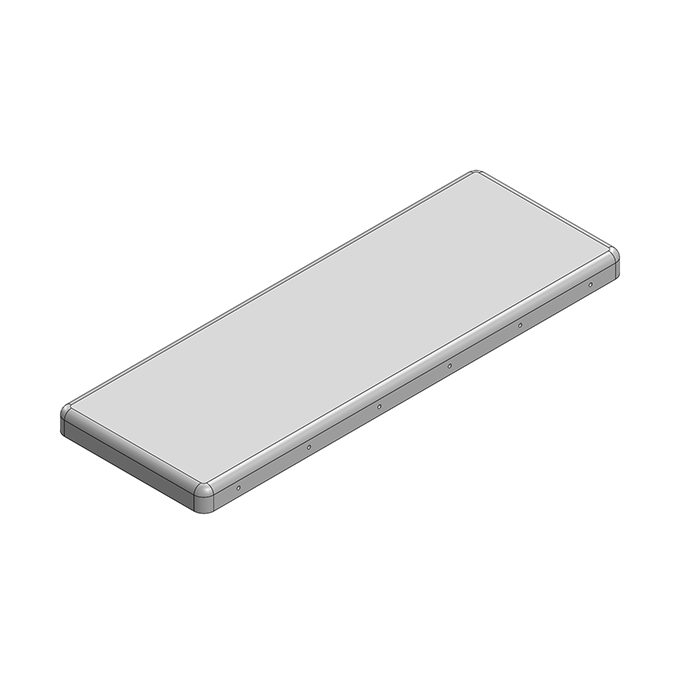

MS593-20C59.9 x 21.2 x 3mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER (CRS) -
MS593-20F59.3 x 20.6 x 5.7mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME (CRS) -
MS593-20S59.3 x 20.6 x 5.7mm One-piece Drawn-Seamless RF Shield / EMI Shield (CRS) -
MS593-20C-NS59.9 x 21.2 x 3mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER (Nickel-Silver)
