| MS473-10CP-NS | |
|---|---|
|
47.9 x 23.9 x 3.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER Perforated
|
MS473-10CP-NS |
|
|---|---|
|
47.9 x 23.9 x 3.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER Perforated
|
|
| Item Configuration | 2-piece EMI/RFI Shield COVER |
| Item Length | 47.9 mm |
| Item Width | 23.9 mm |
| Item Height | 3.5 mm |
| Ventilation | Vented |
| Mounting Type | Snap Fit on FRAME |
| Raw Material | Nickel-Silver |
| Packaging | Tray |
| RoHS Compliance |
|
| COO | IL (Israel) |
| Documents & Media |
|---|
| Downloads & Certificates |
| Storage & Handling |
| MS Catalog |
Global Product Availability
Select..
- Octopart
- FindChips
Optional Shield Configurations
-
MS473-10C47.9 x 23.9 x 3.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER (CRS) -
MS473-10CP47.9 x 23.9 x 3.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER Perforated (CRS) -

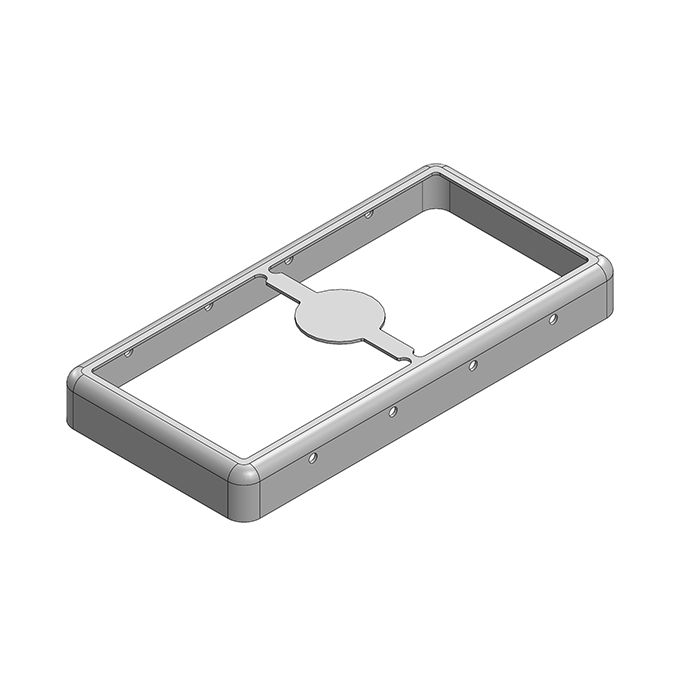

MS473-10F47.3 x 23.3 x 5.3mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME (CRS) -
MS473-10S47.3 x 23.3 x 5.3mm One-piece Drawn-Seamless RF Shield / EMI Shield (CRS) -
MS473-10C-NS47.9 x 23.9 x 3.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER (Nickel-Silver)
-
MS473-10CP-NS47.9 x 23.9 x 3.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER Perforated (Nickel-Silver)
-
MS473-10F-NS47.3 x 23.3 x 5.3mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME (Nickel-Silver)
-

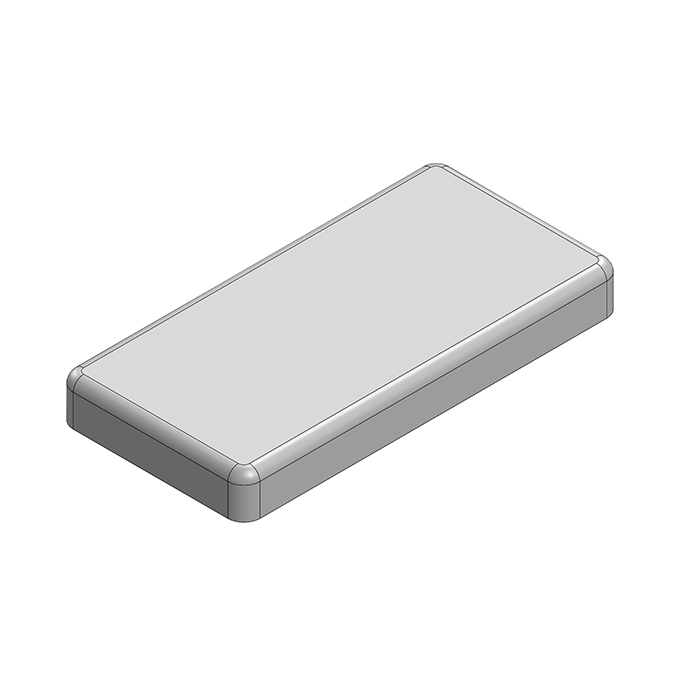

MS473-10S-NS47.3 x 23.3 x 5.3mm One-piece Drawn-Seamless RF Shield / EMI Shield (Nickel-Silver)
