| MS409-10S | |
|---|---|
|
40.9 x 21.5 x 2.5mm One-piece Drawn-Seamless RF Shield / EMI Shield
|
MS409-10S |
|
|---|---|
|
40.9 x 21.5 x 2.5mm One-piece Drawn-Seamless RF Shield / EMI Shield
|
|
| Item Configuration | 1-piece EMI/RFI Shield |
| Item Length | 40.9 mm |
| Item Width | 21.5 mm |
| Item Height | 2.5 mm |
| Ventilation | Non-Vented |
| Mounting Type | SMD/SMT Soldering |
| Raw Material | Tin-Steel (CRS) |
| Packaging | Tray |
| RoHS Compliance |
|
| COO | IL (Israel) |
| Documents & Media |
|---|
| Downloads & Certificates |
| Storage & Handling |
| MS Catalog |
Global Product Availability
Select..
- Octopart
- FindChips
Optional Shield Configurations
-

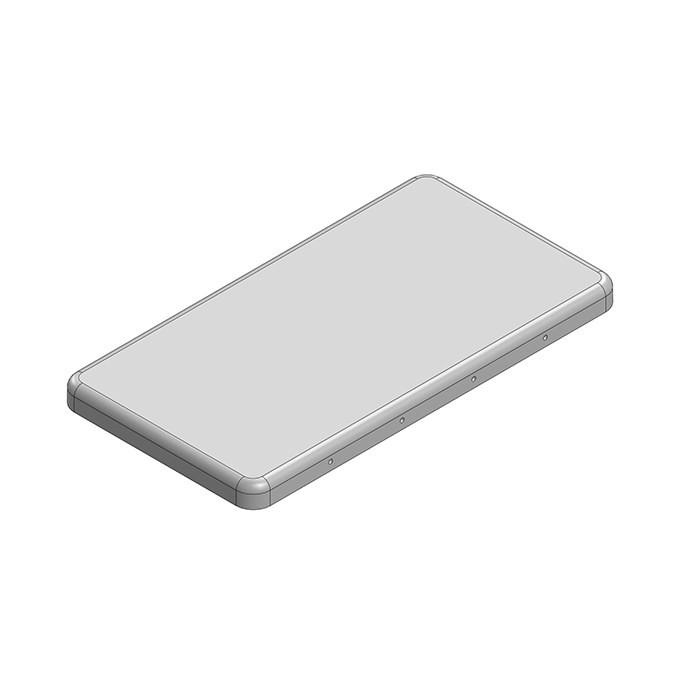

MS409-10C41.3 x 21.9 x 2.4mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER (CRS) -

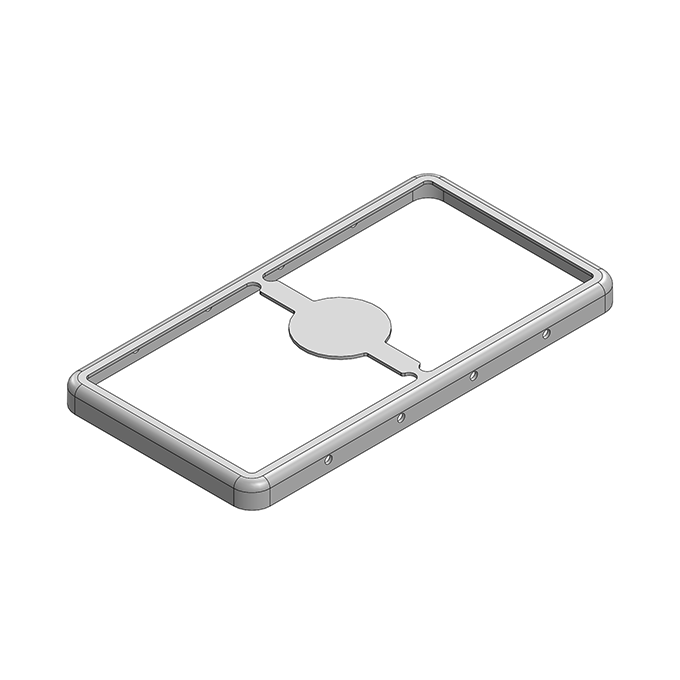

MS409-10F40.9 x 21.5 x 2.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME (CRS) -
MS409-10S40.9 x 21.5 x 2.5mm One-piece Drawn-Seamless RF Shield / EMI Shield (CRS) -
MS409-10C-NS41.3 x 21.9 x 2.4mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER (Nickel-Silver)
-
MS409-10F-NS40.9 x 21.5 x 2.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME (Nickel-Silver)
-
MS409-10S-NS40.9 x 21.5 x 2.5mm One-piece Drawn-Seamless RF Shield / EMI Shield (Nickel-Silver)
