| MS378-20C-NS | |
|---|---|
|

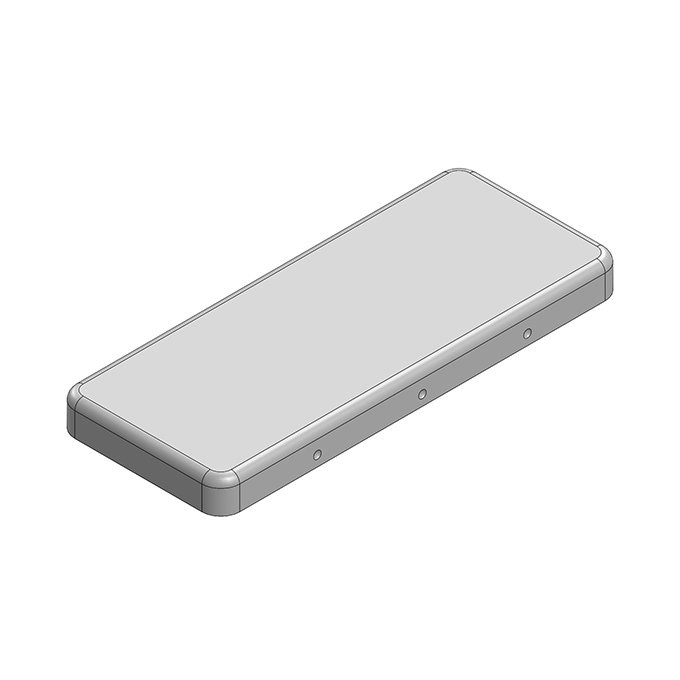

38.4 x 15.7 x 3.1mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER
|
MS378-20C-NS |
|
|---|---|
|
38.4 x 15.7 x 3.1mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER
|
|
| Item Configuration | 2-piece EMI/RFI Shield COVER |
| Item Length | 38.4 mm |
| Item Width | 15.7 mm |
| Item Height | 3.1 mm |
| Ventilation | Non-Vented |
| Mounting Type | Snap Fit on FRAME |
| Raw Material | Nickel-Silver |
| Packaging | Tray |
| RoHS Compliance |
|
| COO | IL (Israel) |
| Documents & Media |
|---|
| Downloads & Certificates |
| Storage & Handling |
| MS Catalog |
Global Product Availability
Select..
- Octopart
- FindChips
Optional Shield Configurations
-
MS378-20C38.4 x 15.7 x 3.1mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER (CRS) -

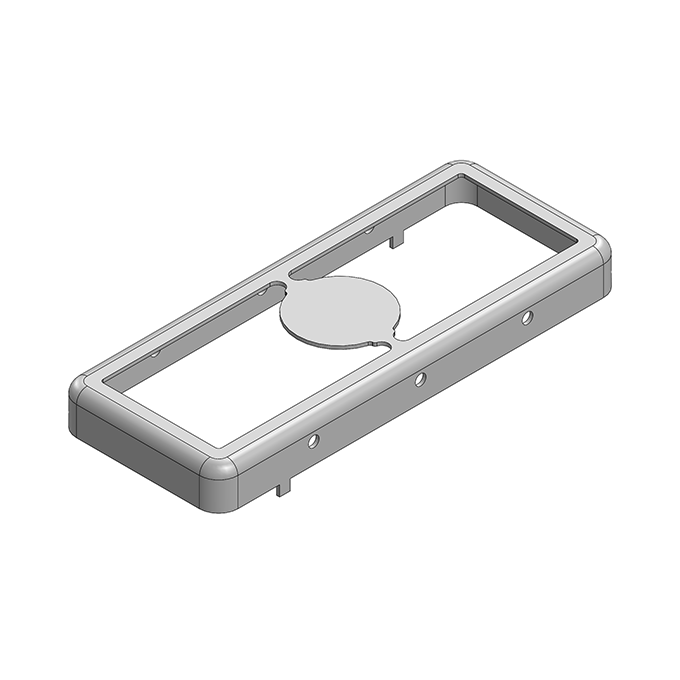

MS378-20F37.8 x 15.1 x 3.7mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME (CRS) -

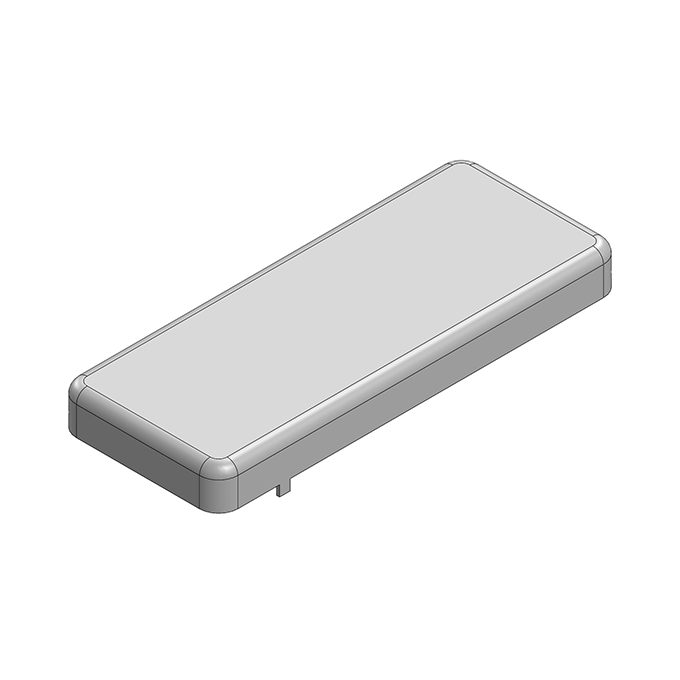

MS378-20S37.8 x 15.1 x 3.7mm One-piece Drawn-Seamless RF Shield / EMI Shield (CRS) -
MS378-20C-NS38.4 x 15.7 x 3.1mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER (Nickel-Silver)
-
MS378-20F-NS37.8 x 15.1 x 3.7mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME (Nickel-Silver)
-
MS378-20S-NS37.8 x 15.1 x 3.7mm One-piece Drawn-Seamless RF Shield / EMI Shield (Nickel-Silver)
