| MS220-10F-NS | |
|---|---|
|

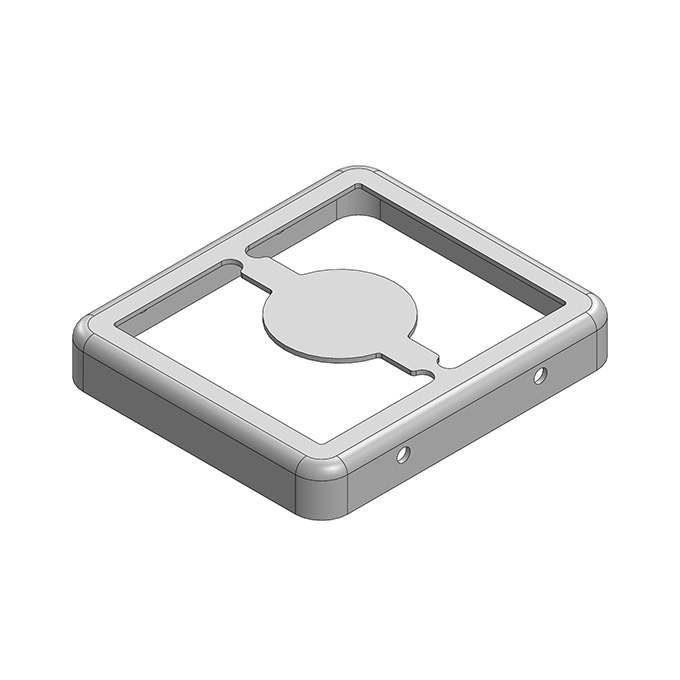

22 x 19.3 x 3.3mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME
|
MS220-10F-NS |
|
|---|---|
|
22 x 19.3 x 3.3mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME
|
|
| Item Configuration | 2-piece EMI/RFI Shield FRAME |
| Item Length | 22 mm |
| Item Width | 19.3 mm |
| Item Height | 3.3 mm |
| Ventilation | Non-Vented |
| Mounting Type | SMD/SMT Soldering |
| Raw Material | Nickel-Silver |
| Packaging | Tray |
| RoHS Compliance |
|
| COO | IL (Israel) |
| Documents & Media |
|---|
| Downloads & Certificates |
| Storage & Handling |
| MS Catalog |
Global Product Availability
Select..
- Octopart
- FindChips
Optional Shield Configurations
-
MS220-10C22.6 x 19.9 x 3mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER (CRS) -

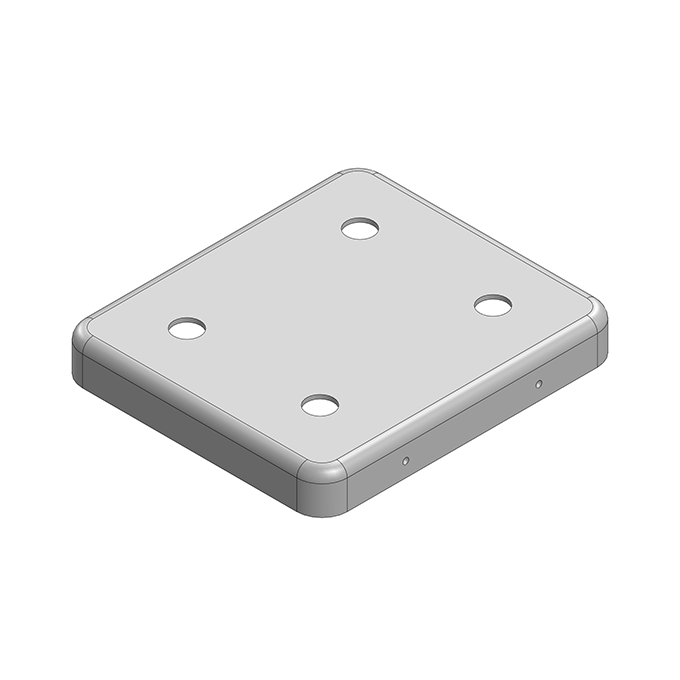

MS220-10CP22.6 x 19.9 x 3mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER Perforated (CRS) -
MS220-10F22 x 19.3 x 3.3mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME (CRS) -
-
MS220-10C-NS22.6 x 19.9 x 3mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER (Nickel-Silver)
-
MS220-10CP-NS22.6 x 19.9 x 3mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER Perforated (Nickel-Silver)
-
MS220-10F-NS22 x 19.3 x 3.3mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME (Nickel-Silver)
-
MS220-10S-NS22 x 19.3 x 3.3mm One-piece Drawn-Seamless RF Shield / EMI Shield (Nickel-Silver)
