| MS207-10C | |
|---|---|
|

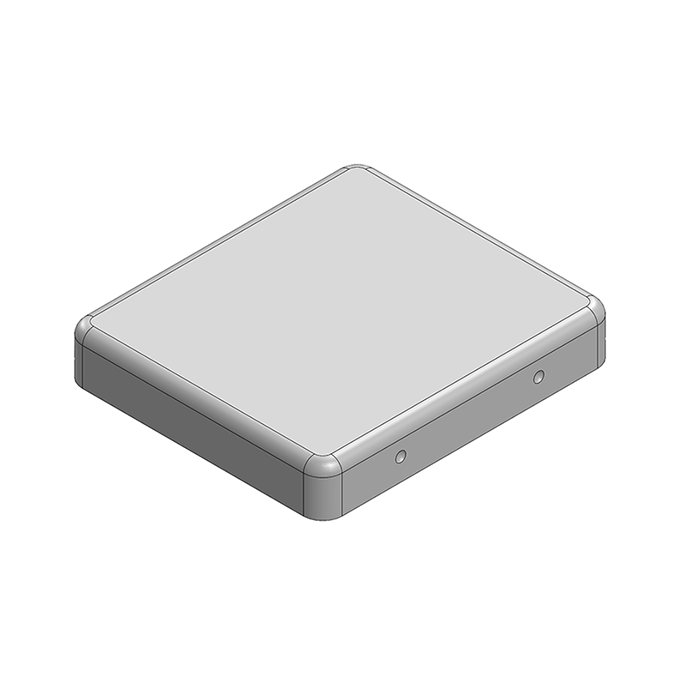

21.3 x 18.8 x 3.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER
|
MS207-10C |
|
|---|---|
|
21.3 x 18.8 x 3.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER
|
|
| Item Configuration | 2-piece EMI/RFI Shield COVER |
| Item Length | 21.3 mm |
| Item Width | 18.8 mm |
| Item Height | 3.5 mm |
| Ventilation | Non-Vented |
| Mounting Type | Snap Fit on FRAME |
| Raw Material | Tin-Steel (CRS) |
| Packaging | Tray |
| RoHS Compliance |
|
| COO | IL (Israel) |
| Documents & Media |
|---|
| Downloads & Certificates |
| Storage & Handling |
| MS Catalog |
Global Product Availability
Select..
- Octopart
- FindChips
Optional Shield Configurations
-
MS207-10C21.3 x 18.8 x 3.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER (CRS) -

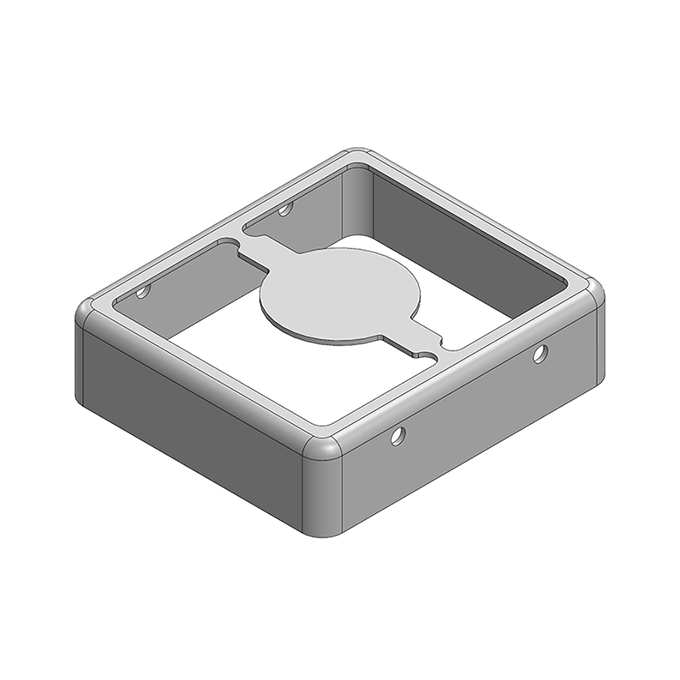

MS207-10F20.7 x 18.2 x 5.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME (CRS) -

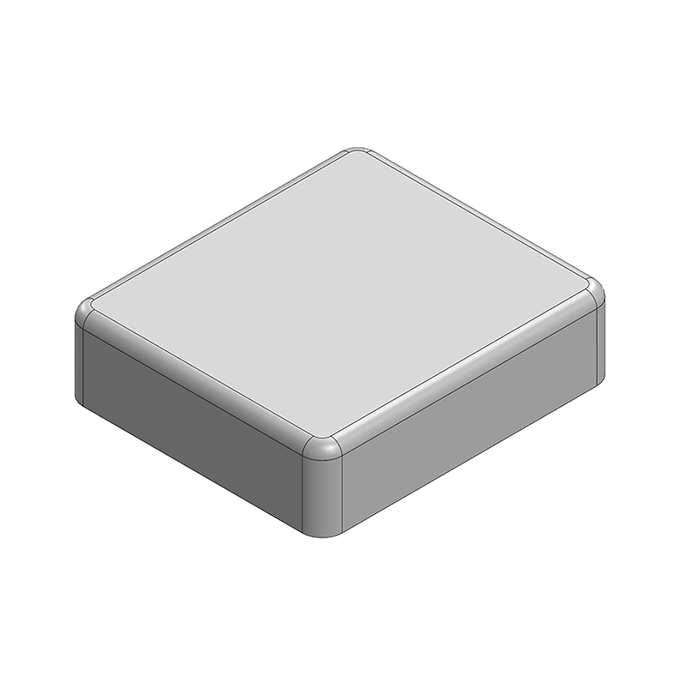

MS207-10S20.7 x 18.2 x 5.5mm One-piece Drawn-Seamless RF Shield / EMI Shield (CRS) -
MS207-10C-NS21.3 x 18.8 x 3.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER (Nickel-Silver)
