822 RF Shields

MS Part #
Configuration
Length
Width
Height
Ventilation
Raw Material
Packaging
COO
MS Part # Configuration Length Width Height Ventilation Raw Material Packaging COO

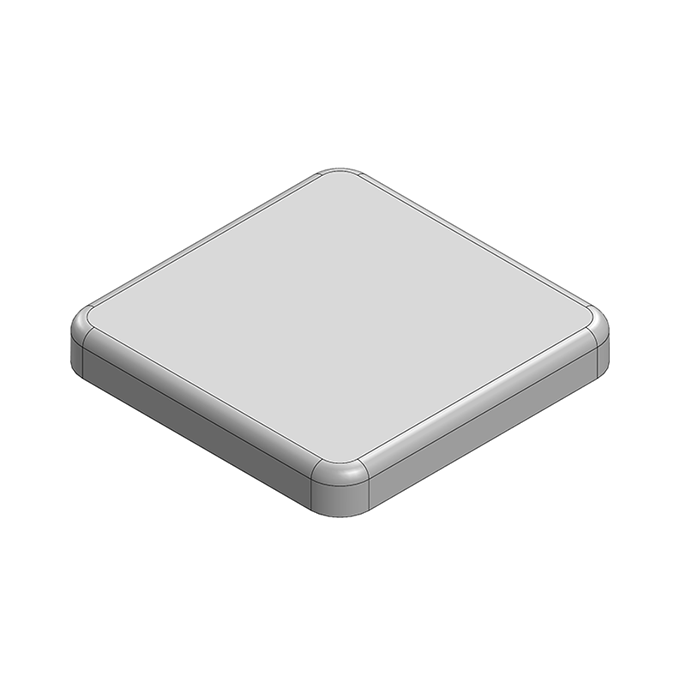

MS148-20S
1-piece EMI/RFI Shield 14.8 mm 14.8 mm 2 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS148-20S-NS
1-piece EMI/RFI Shield 14.8 mm 14.8 mm 2 mm Non-Vented Nickel-Silver Tray IL (Israel)

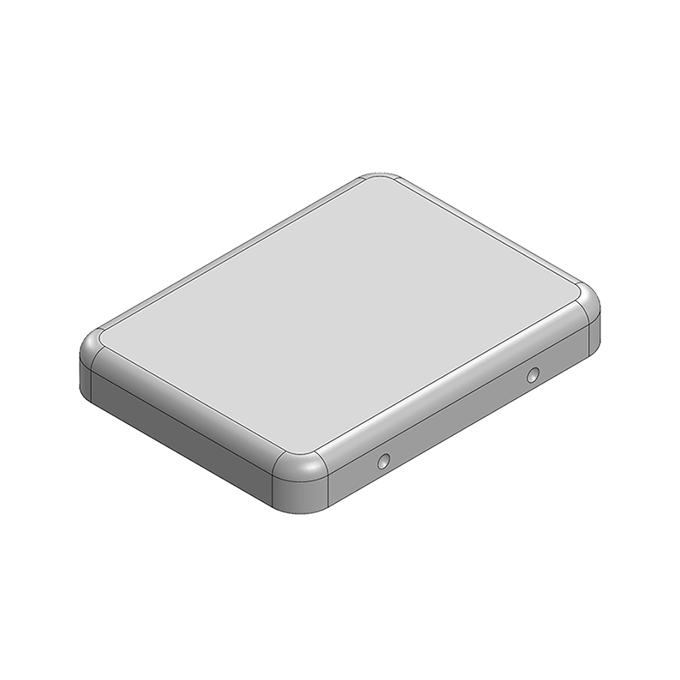

MS155-20C Shield
2-piece EMI/RFI Shield COVER 15.9 mm 11.9 mm 2.1 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS155-20C-NS Shield
2-piece EMI/RFI Shield COVER 15.9 mm 11.9 mm 2.1 mm Non-Vented Nickel-Silver Tray IL (Israel)

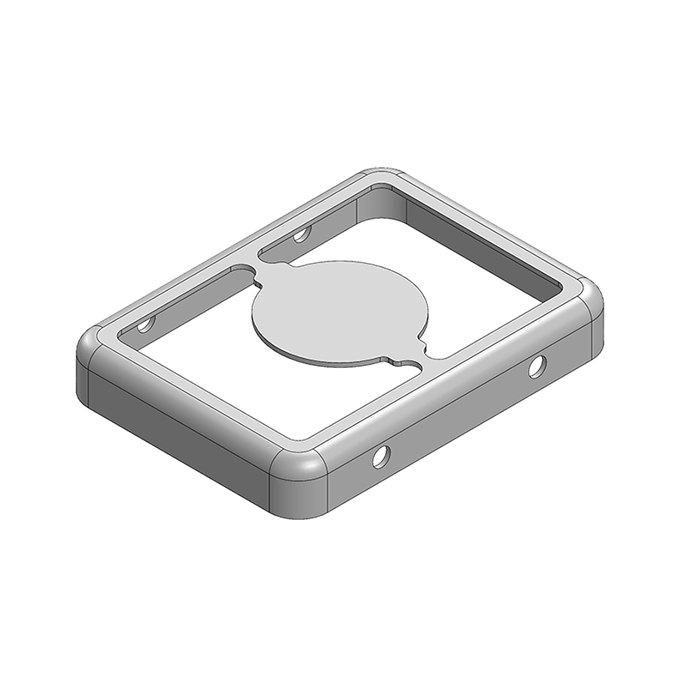

MS155-20F Shield
2-piece EMI/RFI Shield FRAME 15.5 mm 11.5 mm 2.3 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS155-20F-NS Shield
2-piece EMI/RFI Shield FRAME 15.5 mm 11.5 mm 2.3 mm Non-Vented Nickel-Silver Tray IL (Israel)

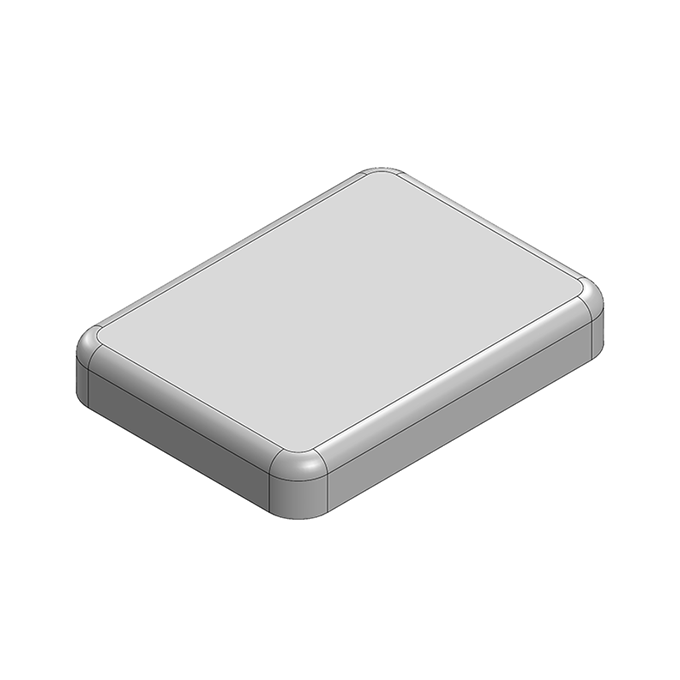

MS155-20S Shield
1-piece EMI/RFI Shield 15.5 mm 11.5 mm 2.3 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS155-20S-NS Shield
1-piece EMI/RFI Shield 15.5 mm 11.5 mm 2.3 mm Non-Vented Nickel-Silver Tray IL (Israel)

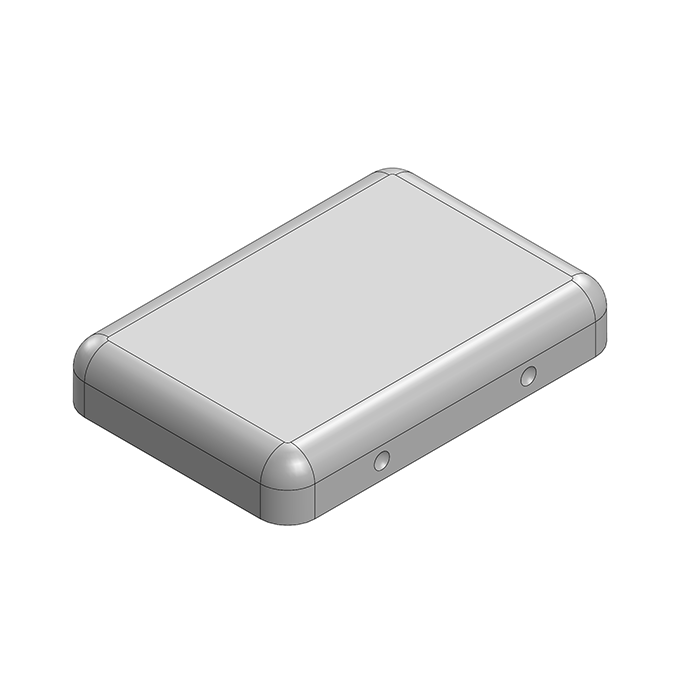

MS156-10C Shield
2-piece EMI/RFI Shield COVER 16 mm 11 mm 2.6 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS156-10C-NS Shield
2-piece EMI/RFI Shield COVER 16 mm 11 mm 2.6 mm Non-Vented Nickel-Silver Tray IL (Israel)

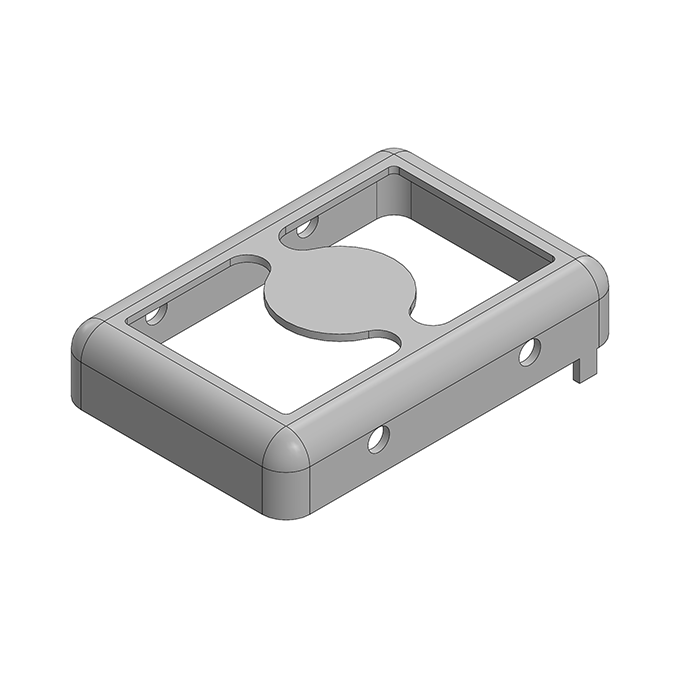

MS156-10F Shield
2-piece EMI/RFI Shield FRAME 15.6 mm 10.6 mm 3 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS156-10F-NS Shield
2-piece EMI/RFI Shield FRAME 15.6 mm 10.6 mm 3 mm Non-Vented Nickel-Silver Tray IL (Israel)
