Drawn-Seamless EMI/RFI Shields

MS Part #

Configuration

Length

Width

Height

Ventilation

Raw Material

Packaging

COO

MS Part #	Configuration	Length	Width	Height	Ventilation	Raw Material	Packaging	COO

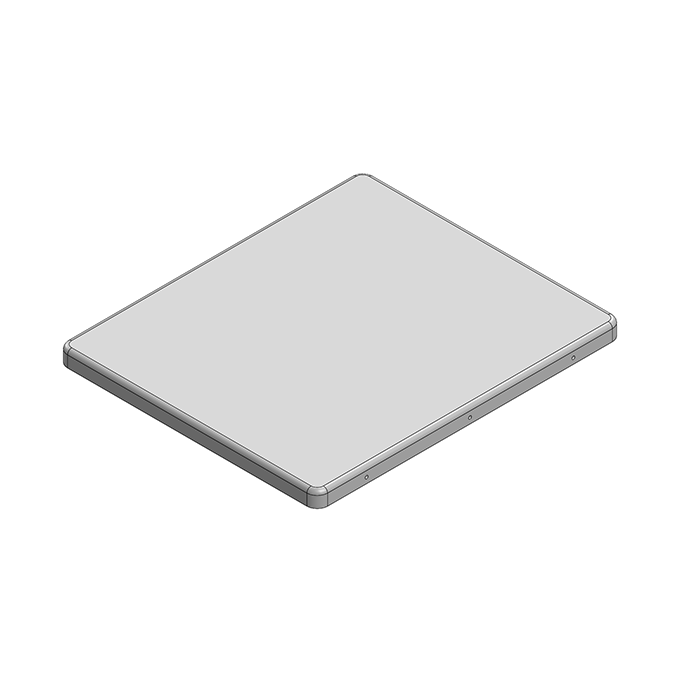

Get MS585-10C 59.1 x 50.3 x 3mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER	2-piece EMI/RFI Shield COVER	59.1 mm	50.3 mm	3 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS585-10C-NS 59.1 x 50.3 x 3mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER	2-piece EMI/RFI Shield COVER	59.1 mm	50.3 mm	3 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

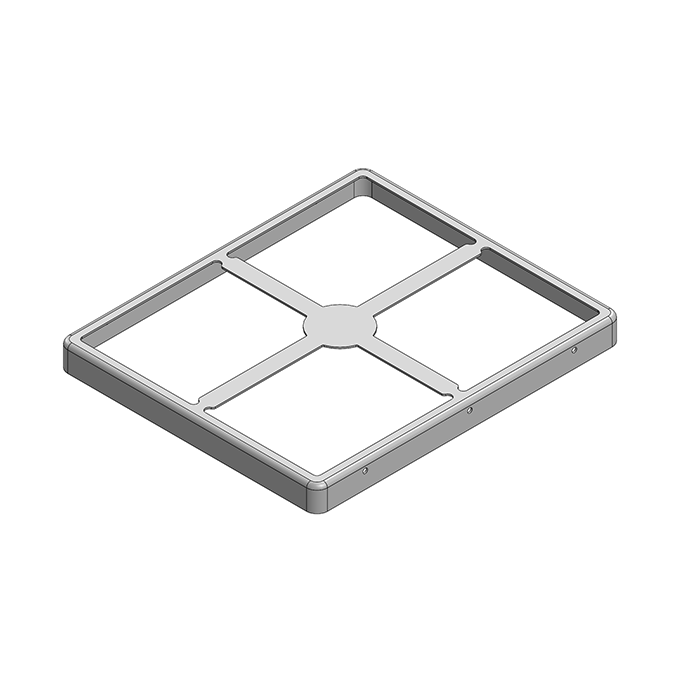

Get MS585-10F 58.5 x 49.7 x 4.7mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	58.5 mm	49.7 mm	4.7 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS585-10F-NS 58.5 x 49.7 x 4.7mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	58.5 mm	49.7 mm	4.7 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

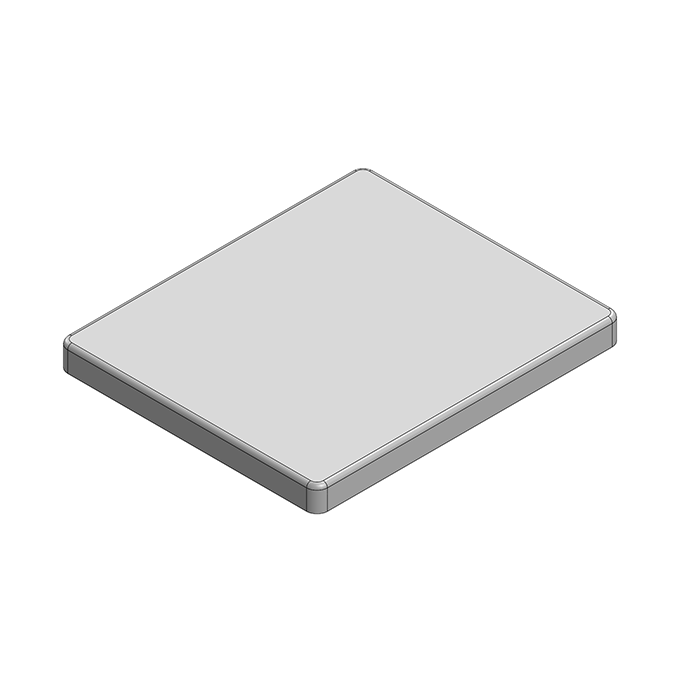

Get MS585-10S 58.5 x 49.7 x 4.7mm One-piece Drawn-Seamless RF Shield / EMI Shield	1-piece EMI/RFI Shield	58.5 mm	49.7 mm	4.7 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS585-10S-NS 58.5 x 49.7 x 4.7mm One-piece Drawn-Seamless RF Shield / EMI Shield	1-piece EMI/RFI Shield	58.5 mm	49.7 mm	4.7 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

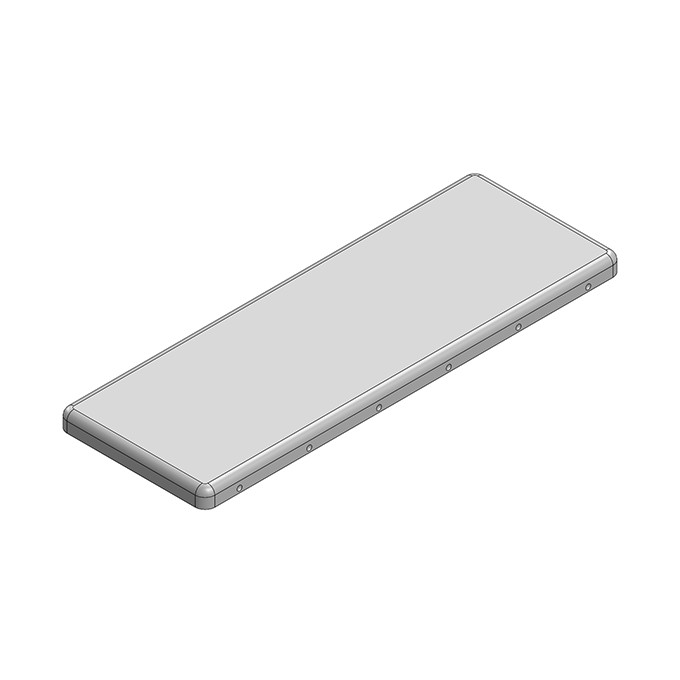

Get MS593-10C 59.9 x 21.2 x 2.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER	2-piece EMI/RFI Shield COVER	59.9 mm	21.2 mm	2.5 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS593-10C-NS 59.9 x 21.2 x 2.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER	2-piece EMI/RFI Shield COVER	59.9 mm	21.2 mm	2.5 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

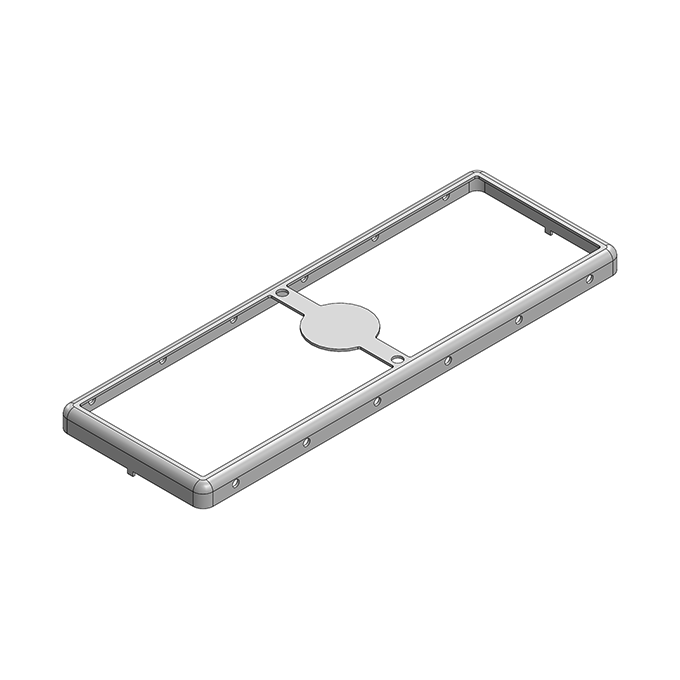

Get MS593-10F 59.3 x 20.6 x 3mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	59.3 mm	20.6 mm	3 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS593-10F-NS 59.3 x 20.6 x 3mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	59.3 mm	20.6 mm	3 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)
Get MS593-10S 59.3 x 20.6 x 3mm One-piece Drawn-Seamless RF Shield / EMI Shield	1-piece EMI/RFI Shield	59.3 mm	20.6 mm	3 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS593-10S-NS 59.3 x 20.6 x 3mm One-piece Drawn-Seamless RF Shield / EMI Shield	1-piece EMI/RFI Shield	59.3 mm	20.6 mm	3 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)
