Drawn-Seamless EMI/RFI Shields

MS Part #

Configuration

Length

Width

Height

Ventilation

Raw Material

Packaging

COO

MS Part #	Configuration	Length	Width	Height	Ventilation	Raw Material	Packaging	COO

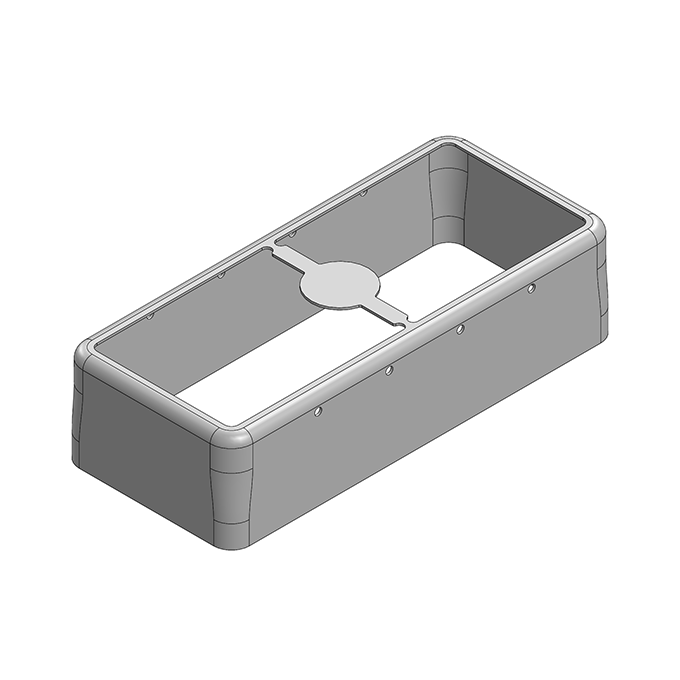

Get MS544-20F 54.4 x 23.9 x 13.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	54.4 mm	23.9 mm	13.5 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS544-20F-NS 54.4 x 23.9 x 13.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	54.4 mm	23.9 mm	13.5 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

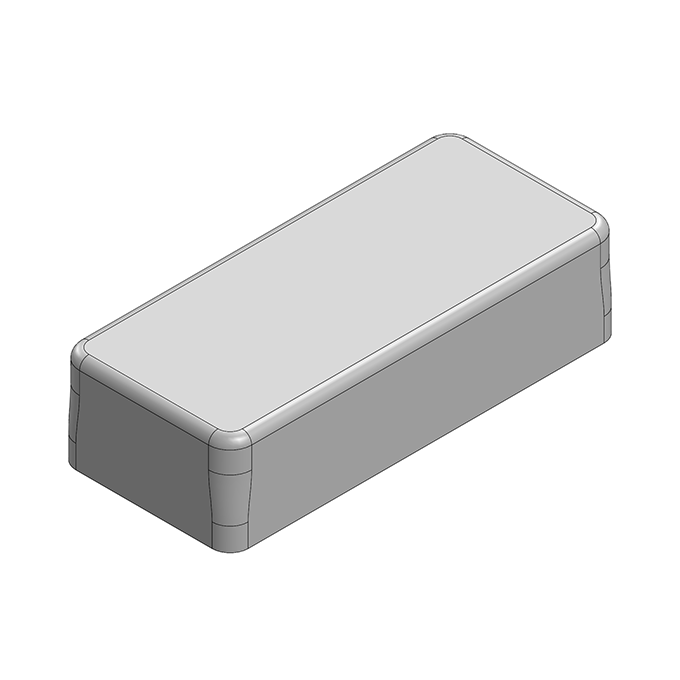

Get MS544-20S 54.4 x 23.9 x 13.5mm One-piece Drawn-Seamless RF Shield / EMI Shield	1-piece EMI/RFI Shield	54.4 mm	23.9 mm	13.5 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS544-20S-NS 54.4 x 23.9 x 13.5mm One-piece Drawn-Seamless RF Shield / EMI Shield	1-piece EMI/RFI Shield	54.4 mm	23.9 mm	13.5 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)
Get MS546-10C 55.2 x 30.2 x 3.5mm Two-piece Drawn-Seamless RF Shield/EMI Shield COVER	2-piece EMI/RFI Shield COVER	55.2 mm	30.2 mm	3.5 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)

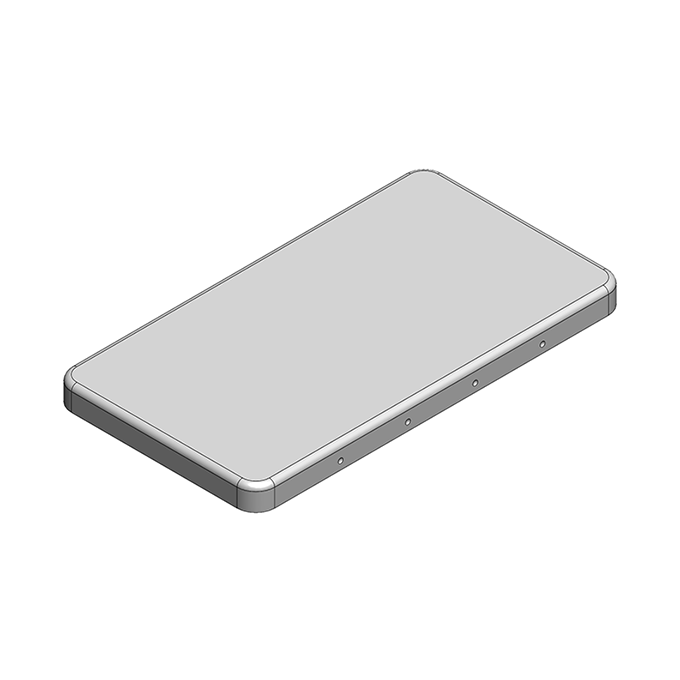

Get MS546-10C-NS 55.2 x 30.2 x 3.5mm Two-piece Drawn-Seamless RF Shield/EMI Shield COVER	2-piece EMI/RFI Shield COVER	55.2 mm	30.2 mm	3.5 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)
Get MS546-10CP 55.2 x 30.2 x 3.5mm Two-piece Drawn-Seamless RF Shield/EMI Shield COVER Perforated	2-piece EMI/RFI Shield COVER	55.2 mm	30.2 mm	3.5 mm	Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS546-10CP-NS 55.2 x 30.2 x 3.5mm Two-piece Drawn-Seamless RF Shield/EMI Shield COVER Perforated	2-piece EMI/RFI Shield COVER	55.2 mm	30.2 mm	3.5 mm	Vented	Nickel-Silver	Tray	IL (Israel)
Get MS546-10F 54.6 x 29.6 x 7mm Two-piece Drawn-Seamless RF Shield/EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	54.6 mm	29.6 mm	7 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)

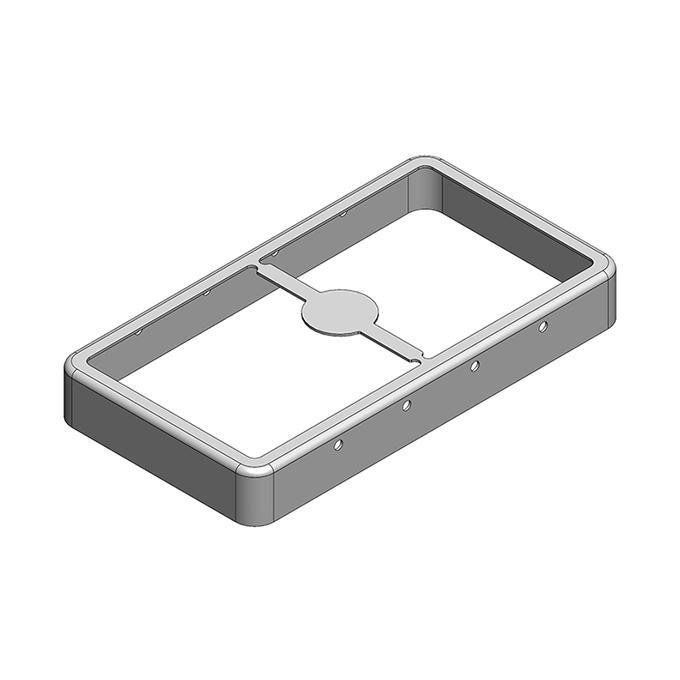

Get MS546-10F-NS 54.6 x 29.6 x 7mm Two-piece Drawn-Seamless RF Shield/EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	54.6 mm	29.6 mm	7 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)
Get MS546-10S 54.6 x 29.6 x 7mm One-piece Drawn-Seamless RF Shield/EMI Shield	1-piece EMI/RFI Shield	54.6 mm	29.6 mm	7 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)

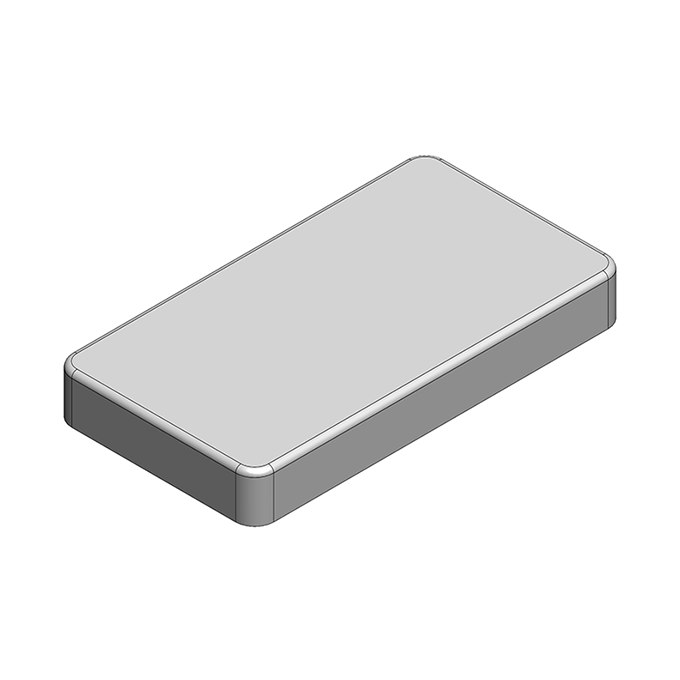

Get MS546-10S-NS 54.6 x 29.6 x 7mm One-piece Drawn-Seamless RF Shield/EMI Shield	1-piece EMI/RFI Shield	54.6 mm	29.6 mm	7 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)
