Drawn-Seamless EMI/RFI Shields

MS Part #

Configuration

Length

Width

Height

Ventilation

Raw Material

Packaging

COO

MS Part #	Configuration	Length	Width	Height	Ventilation	Raw Material	Packaging	COO

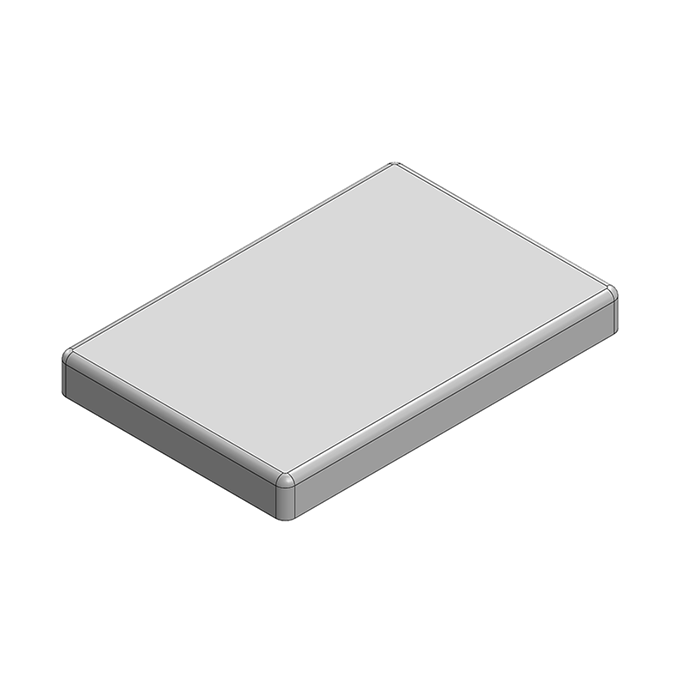

Get MS501-10S 50.1 x 33.9 x 5.3mm One-piece Drawn-Seamless RF Shield / EMI Shield	1-piece EMI/RFI Shield	50.1 mm	33.9 mm	5.3 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS501-10S-NS 50.1 x 33.9 x 5.3mm One-piece Drawn-Seamless RF Shield / EMI Shield	1-piece EMI/RFI Shield	50.1 mm	33.9 mm	5.3 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

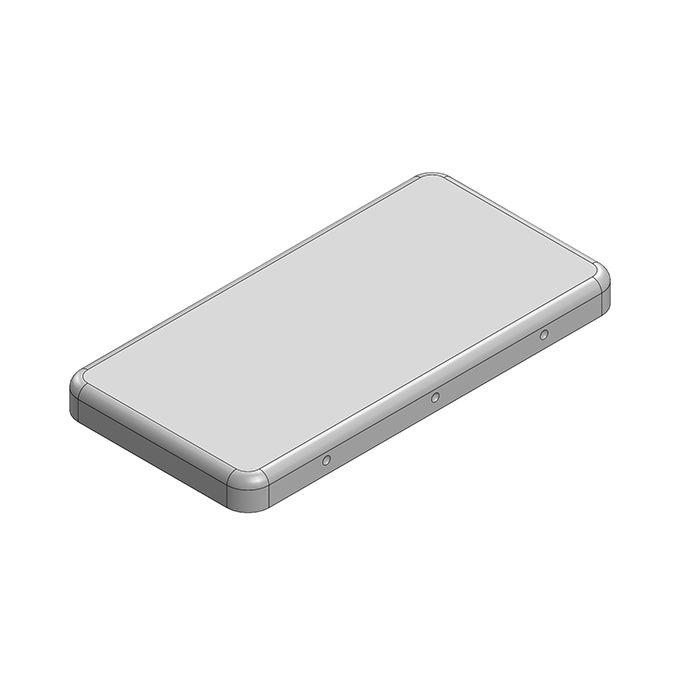

Get MS511-10C 51.7 x 26.3 x 4mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER	2-piece EMI/RFI Shield COVER	51.7 mm	26.3 mm	4 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS511-10C-NS 51.7 x 26.3 x 4mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER	2-piece EMI/RFI Shield COVER	51.7 mm	26.3 mm	4 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

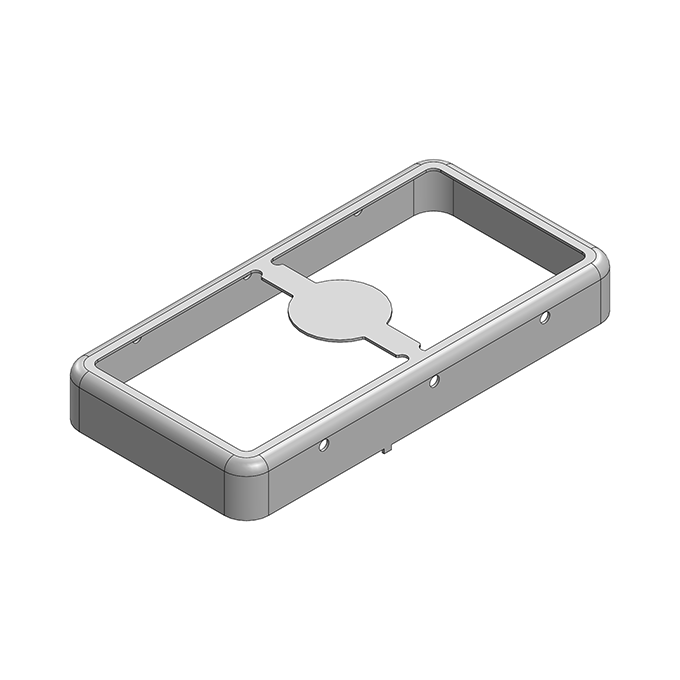

Get MS511-10F 51.1 x 25.7 x 6.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	51.1 mm	25.7 mm	6.5 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS511-10F-NS 51.1 x 25.7 x 6.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	51.1 mm	25.7 mm	6.5 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

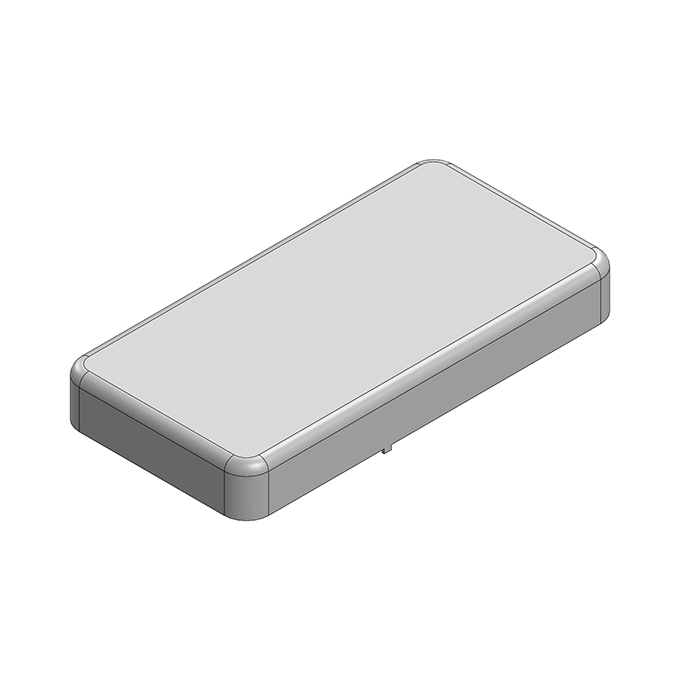

Get MS511-10S 51.1 x 25.7 x 6.5mm One-piece Drawn-Seamless RF Shield / EMI Shield	1-piece EMI/RFI Shield	51.1 mm	25.7 mm	6.5 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS511-10S-NS 51.1 x 25.7 x 6.5mm One-piece Drawn-Seamless RF Shield / EMI Shield	1-piece EMI/RFI Shield	51.1 mm	25.7 mm	6.5 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

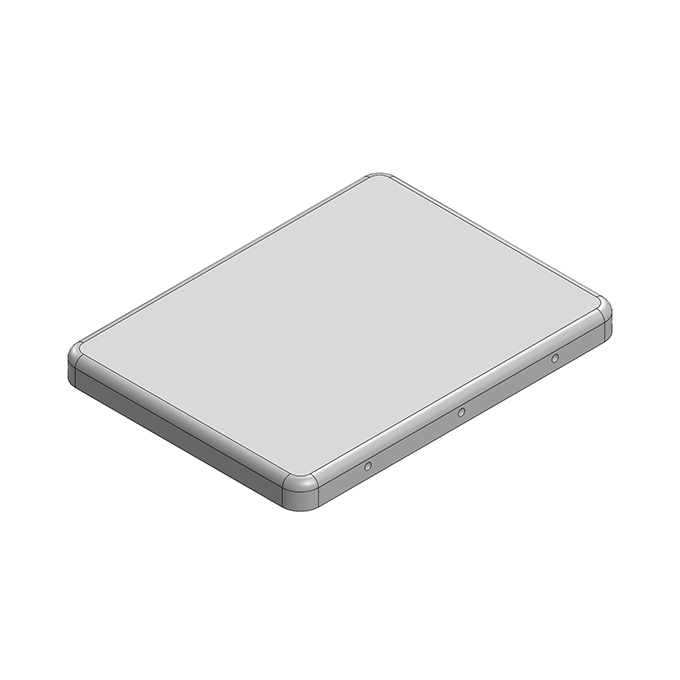

Get MS511-20C 51.7 x 39 x 4mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER	2-piece EMI/RFI Shield COVER	51.7 mm	39 mm	4 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS511-20C-NS 51.7 x 39 x 4mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER	2-piece EMI/RFI Shield COVER	51.7 mm	39 mm	4 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

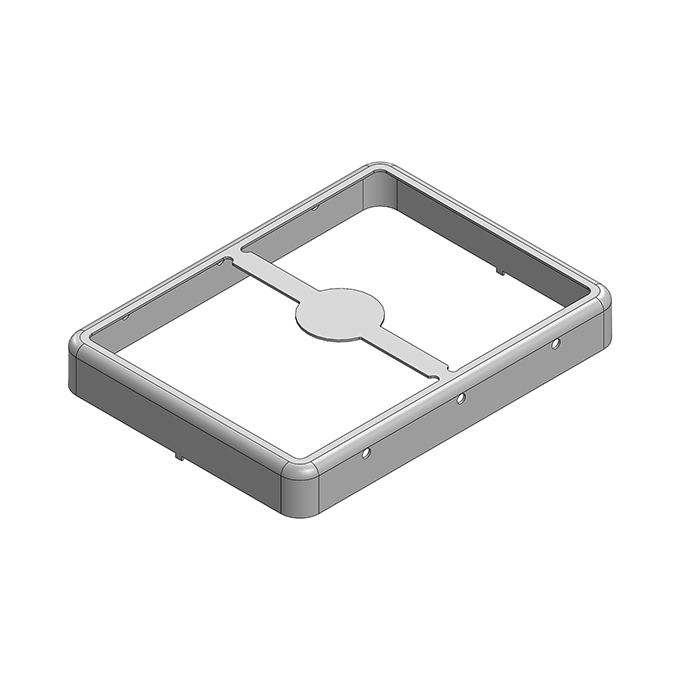

Get MS511-20F 51.1 x 38.4 x 6.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	51.1 mm	38.4 mm	6.5 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS511-20F-NS 51.1 x 38.4 x 6.5mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	51.1 mm	38.4 mm	6.5 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)
