822 RF Shields

MS Part #
Configuration
Length
Width
Height
Ventilation
Raw Material
Packaging
COO
MS Part # Configuration Length Width Height Ventilation Raw Material Packaging COO

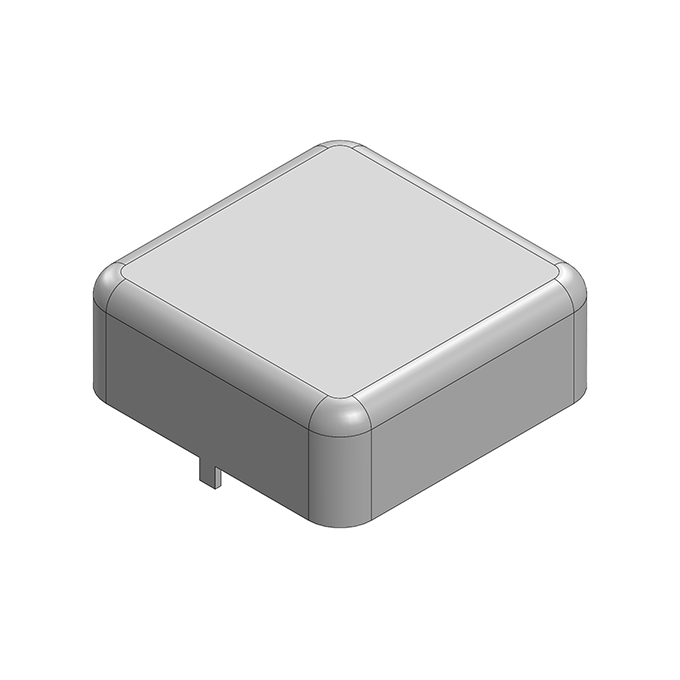

MS135-20S Shield
1-piece EMI/RFI Shield 13.5 mm 13.5 mm 5 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS135-20S-NS Shield
1-piece EMI/RFI Shield 13.5 mm 13.5 mm 5 mm Non-Vented Nickel-Silver Tray IL (Israel)
MS148-10C Shield
2-piece EMI/RFI Shield COVER 15.2 mm 9.3 mm 2 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)

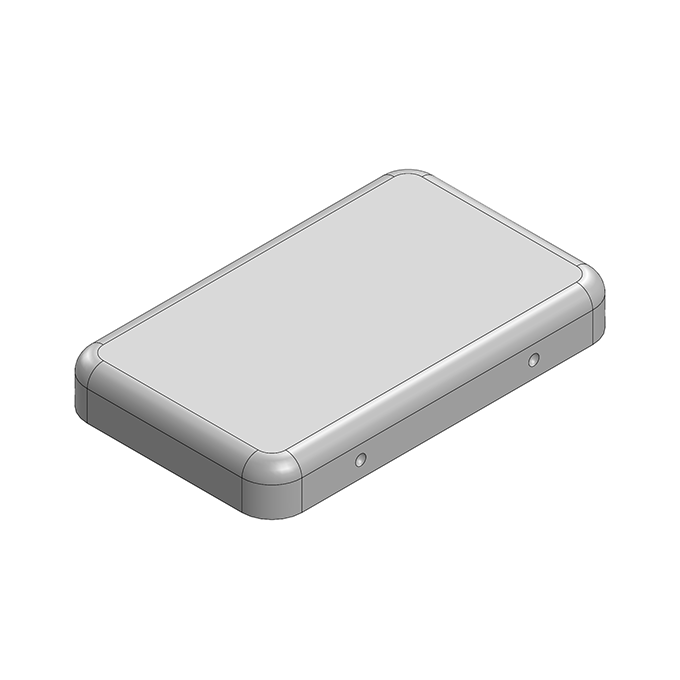

MS148-10C-NS Shield
2-piece EMI/RFI Shield COVER 15.2 mm 9.3 mm 2 mm Non-Vented Nickel-Silver Tray IL (Israel)

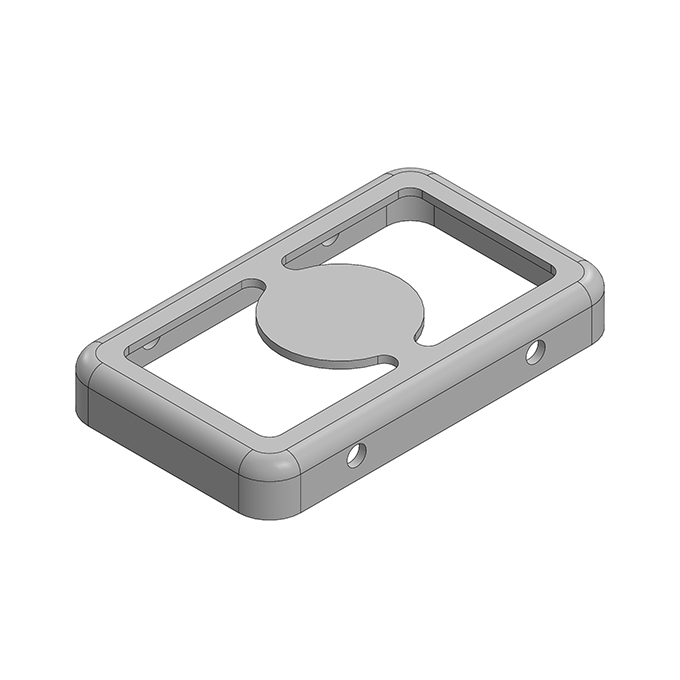

MS148-10F Shield
2-piece EMI/RFI Shield FRAME 14.8 mm 8.9 mm 2 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS148-10F-NS Shield
2-piece EMI/RFI Shield FRAME 14.8 mm 8.9 mm 2 mm Non-Vented Nickel-Silver Tray IL (Israel)

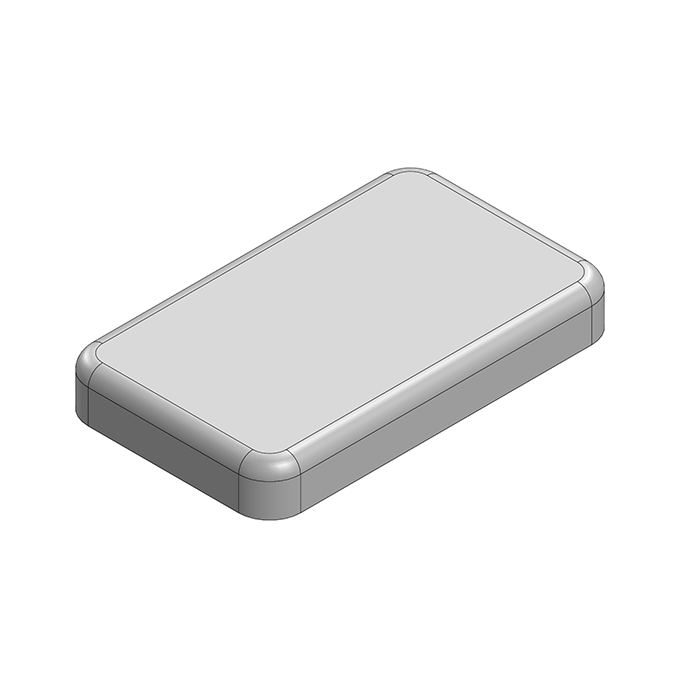

MS148-10S Shield
1-piece EMI/RFI Shield 14.8 mm 8.9 mm 2 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS148-10S-NS Shield
1-piece EMI/RFI Shield 14.8 mm 8.9 mm 2 mm Non-Vented Nickel-Silver Tray IL (Israel)

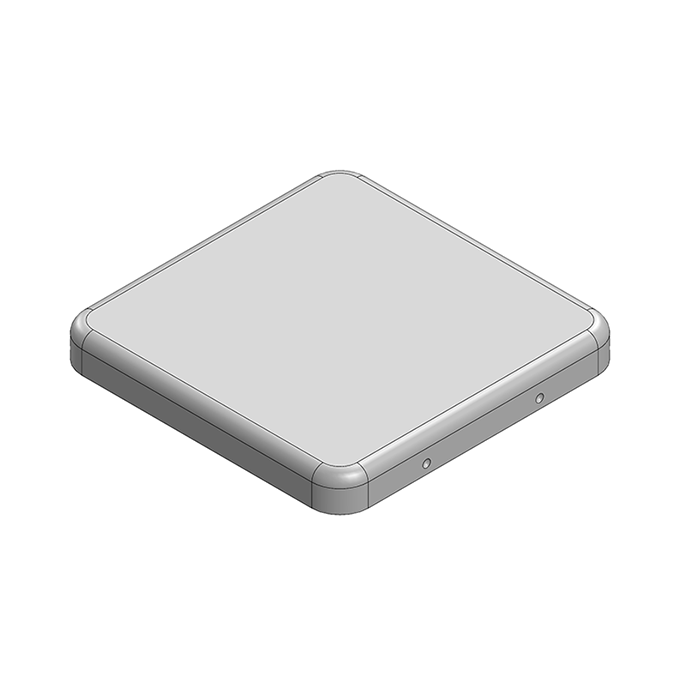

MS148-20C
2-piece EMI/RFI Shield COVER 15.2 mm 15.2 mm 1.8 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS148-20C-NS
2-piece EMI/RFI Shield COVER 15.2 mm 15.2 mm 1.8 mm Non-Vented Nickel-Silver Tray IL (Israel)

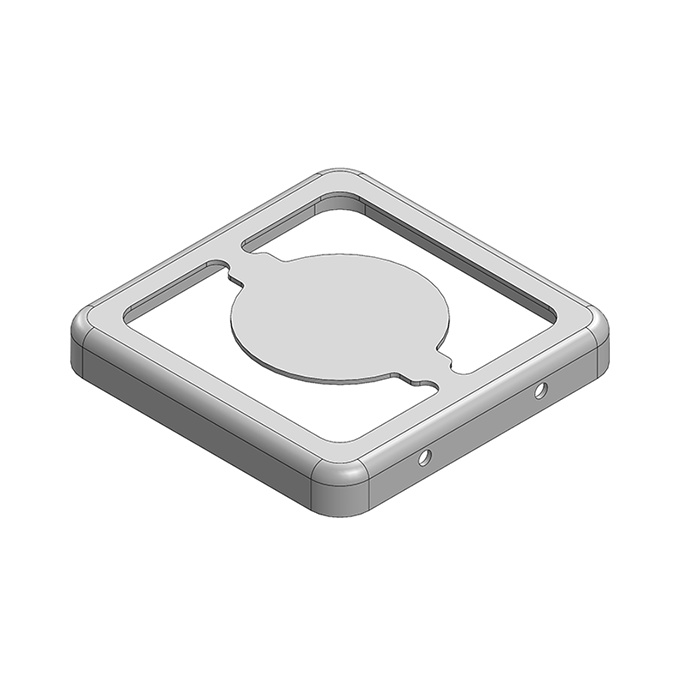

MS148-20F
2-piece EMI/RFI Shield FRAME 14.8 mm 14.8 mm 2 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS148-20F-NS
2-piece EMI/RFI Shield FRAME 14.8 mm 14.8 mm 2 mm Non-Vented Nickel-Silver Tray IL (Israel)
per page
