Drawn-Seamless EMI/RFI Shield | Masach

JavaScript seems to be disabled in your browser. For the best experience on our site, be sure to turn on Javascript in your browser.

Search

Home
Drawn-Seamless EMI/RFI Shields

MS Part #

Configuration

Length

Width

Height

Ventilation

Raw Material

Packaging

COO

MS Part #	Configuration	Length	Width	Height	Ventilation	Raw Material	Packaging	COO

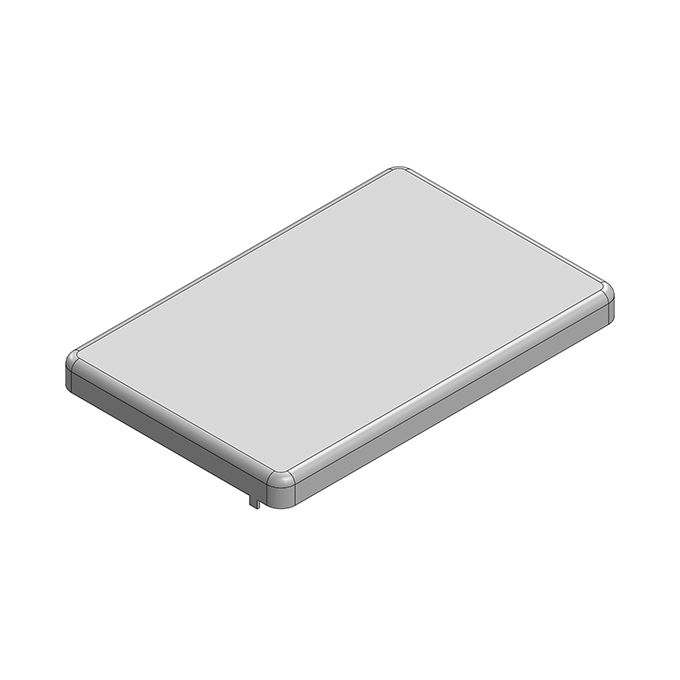

Get MS434-10S 43.4 x 28.4 x 3.3mm One-piece Drawn-Seamless RF Shield / EMI Shield	1-piece EMI/RFI Shield	43.4 mm	28.4 mm	3.3 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS434-10S-NS 43.4 x 28.4 x 3.3mm One-piece Drawn-Seamless RF Shield / EMI Shield	1-piece EMI/RFI Shield	43.4 mm	28.4 mm	3.3 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)
Get MS448-10C 45.2 x 18.6 x 2.8mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER	2-piece EMI/RFI Shield COVER	45.2 mm	18.6 mm	2.8 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS448-10C-NS 45.2 x 18.6 x 2.8mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER	2-piece EMI/RFI Shield COVER	45.2 mm	18.6 mm	2.8 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

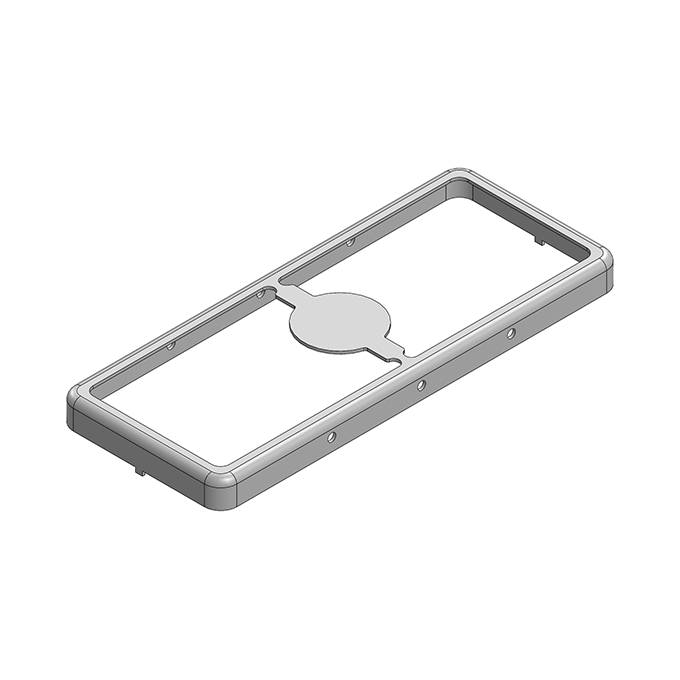

Get MS448-10F 44.8 x 18.2 x 3mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	44.8 mm	18.2 mm	3 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS448-10F-NS 44.8 x 18.2 x 3mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	44.8 mm	18.2 mm	3 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

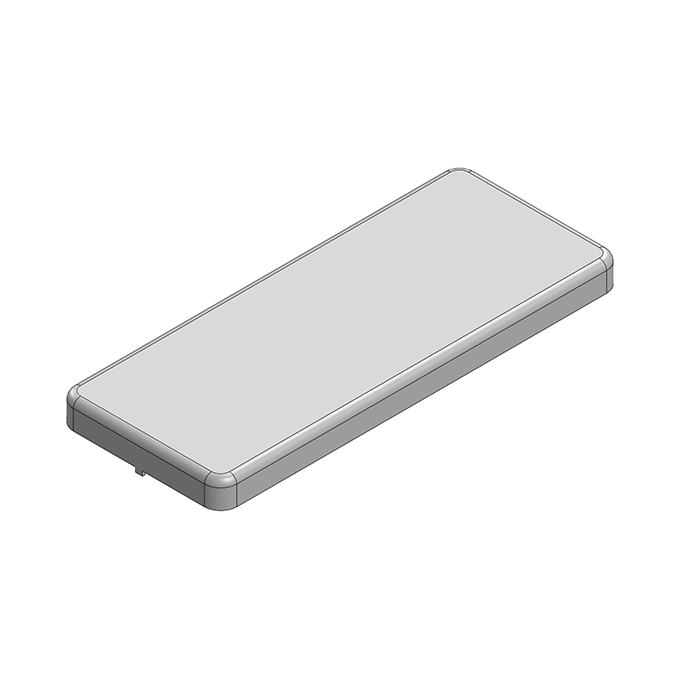

Get MS448-10S 44.8 x 18.2 x 3mm One-piece Drawn-Seamless RF Shield / EMI Shield	1-piece EMI/RFI Shield	44.8 mm	18.2 mm	3 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS448-10S-NS 44.8 x 18.2 x 3mm One-piece Drawn-Seamless RF Shield / EMI Shield	1-piece EMI/RFI Shield	44.8 mm	18.2 mm	3 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)
Get MS448-20C 45.2 x 18.6 x 2.8mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER	2-piece EMI/RFI Shield COVER	45.2 mm	18.6 mm	2.8 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS448-20C-NS 45.2 x 18.6 x 2.8mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER	2-piece EMI/RFI Shield COVER	45.2 mm	18.6 mm	2.8 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

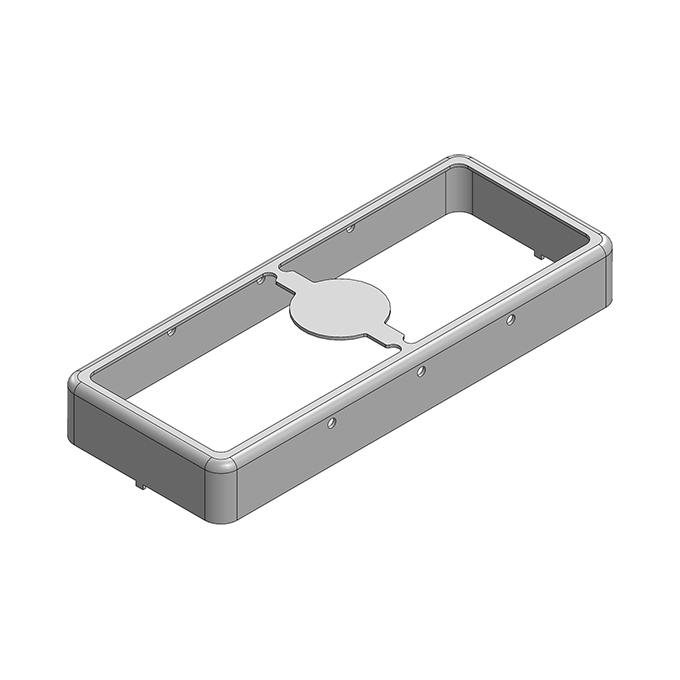

Get MS448-20F 44.8 x 18.2 x 5.7mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	44.8 mm	18.2 mm	5.7 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS448-20F-NS 44.8 x 18.2 x 5.7mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	44.8 mm	18.2 mm	5.7 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)
