Drawn-Seamless EMI/RFI Shields

MS Part #

Configuration

Length

Width

Height

Ventilation

Raw Material

Packaging

COO

MS Part #	Configuration	Length	Width	Height	Ventilation	Raw Material	Packaging	COO

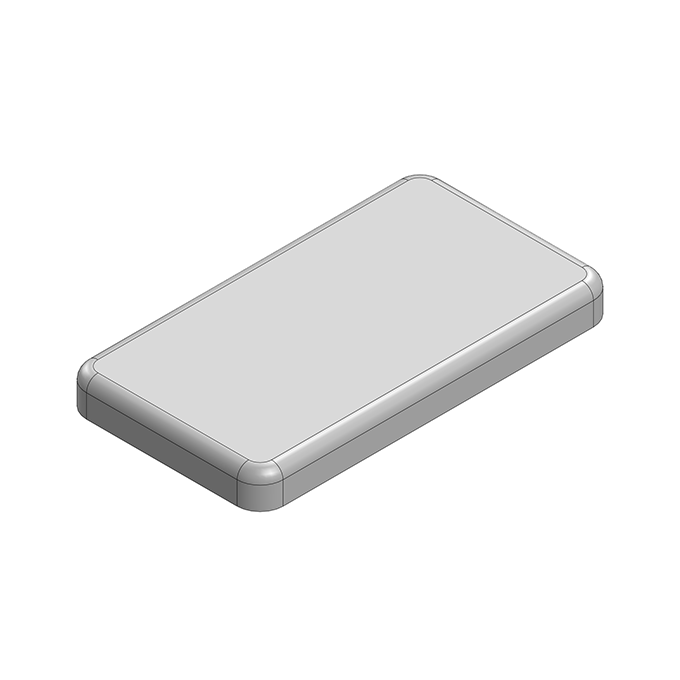

Get MS310-10S 31 x 17.1 x 3mm One-piece Drawn-Seamless RF Shield / EMI Shield	1-piece EMI/RFI Shield	31 mm	17.1 mm	3 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS310-10S-NS 31 x 17.1 x 3mm One-piece Drawn-Seamless RF Shield / EMI Shield	1-piece EMI/RFI Shield	31 mm	17.1 mm	3 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

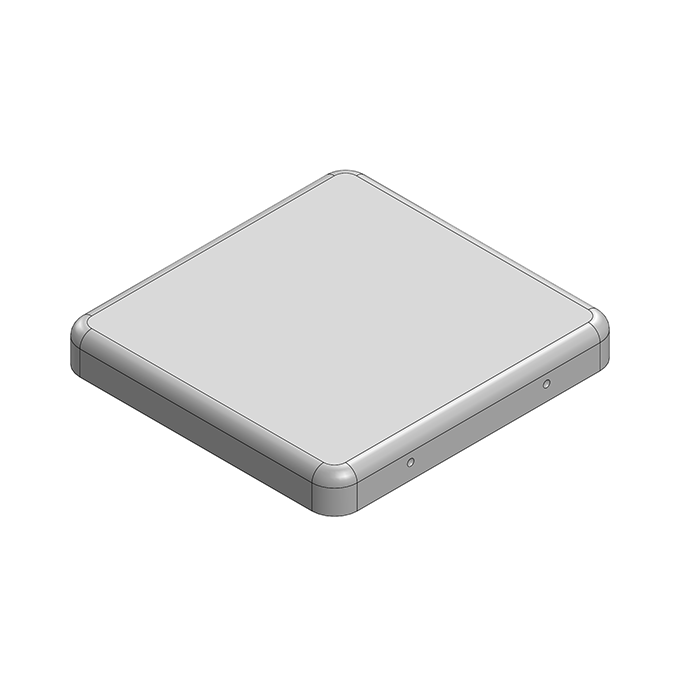

Get MS312-10C 31.8 x 30.6 x 4mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER	2-piece EMI/RFI Shield COVER	31.8 mm	30.6 mm	4 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS312-10C-NS 31.8 x 30.6 x 4mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER	2-piece EMI/RFI Shield COVER	31.8 mm	30.6 mm	4 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

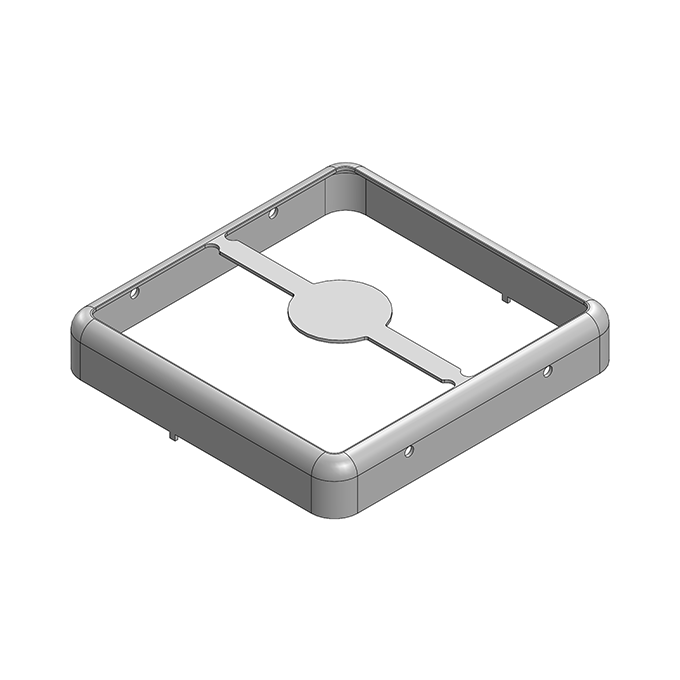

Get MS312-10F 31.2 x 30 x 5mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	31.2 mm	30 mm	5 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS312-10F-NS 31.2 x 30 x 5mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	31.2 mm	30 mm	5 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

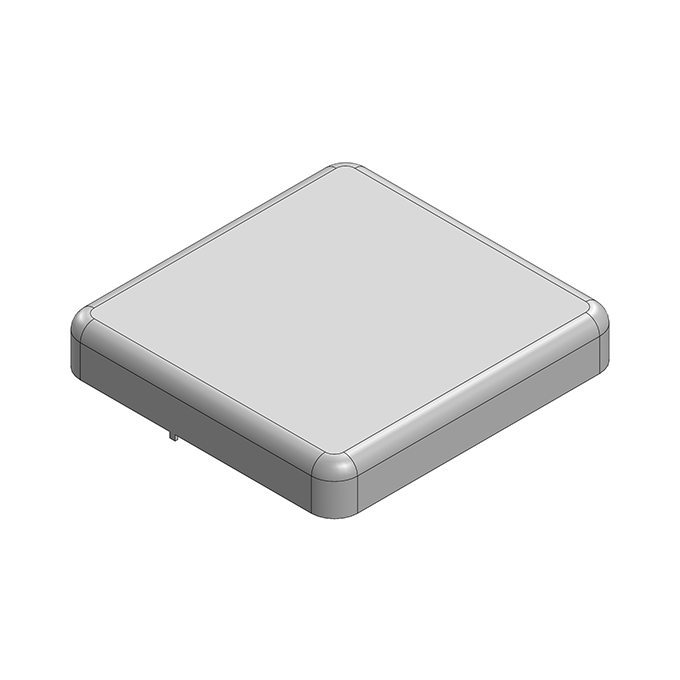

Get MS312-10S 31.2 x 30 x 5mm One-piece Drawn-Seamless RF Shield / EMI Shield	1-piece EMI/RFI Shield	31.2 mm	30 mm	5 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS312-10S-NS 31.2 x 30 x 5mm One-piece Drawn-Seamless RF Shield / EMI Shield	1-piece EMI/RFI Shield	31.2 mm	30 mm	5 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

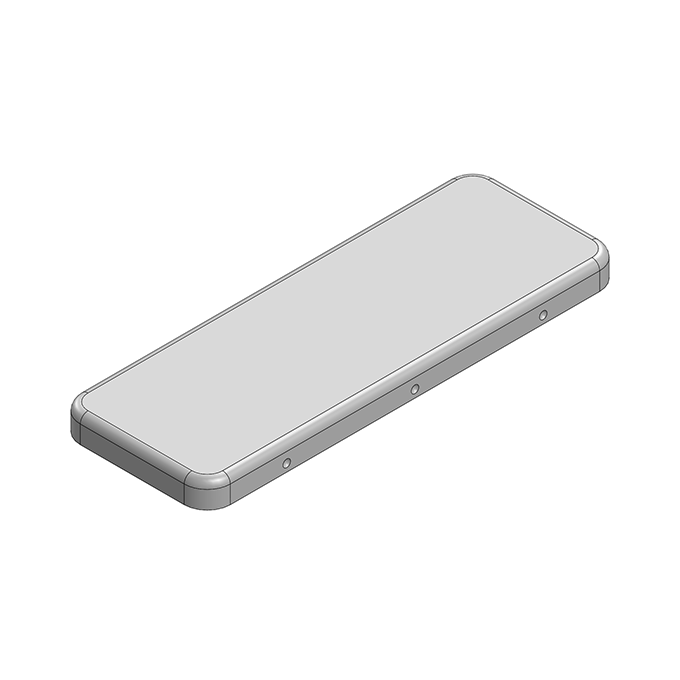

Get MS320-10C 32.4 x 11.7 x 2mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER	2-piece EMI/RFI Shield COVER	32.4 mm	11.7 mm	2 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS320-10C-NS 32.4 x 11.7 x 2mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER	2-piece EMI/RFI Shield COVER	32.4 mm	11.7 mm	2 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

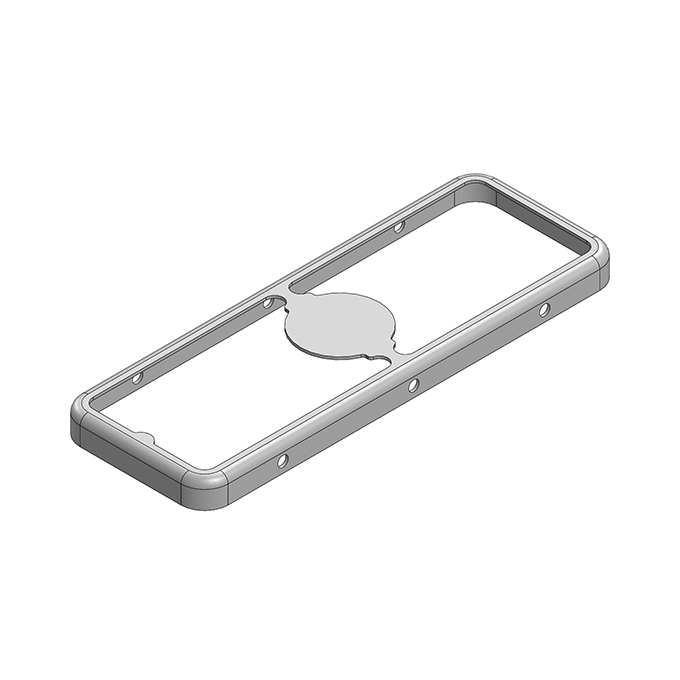

Get MS320-10F 32 x 11.3 x 2mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	32 mm	11.3 mm	2 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS320-10F-NS 32 x 11.3 x 2mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	32 mm	11.3 mm	2 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)
