Drawn-Seamless EMI/RFI Shields

MS Part #

Configuration

Length

Width

Height

Ventilation

Raw Material

Packaging

COO

MS Part #	Configuration	Length	Width	Height	Ventilation	Raw Material	Packaging	COO

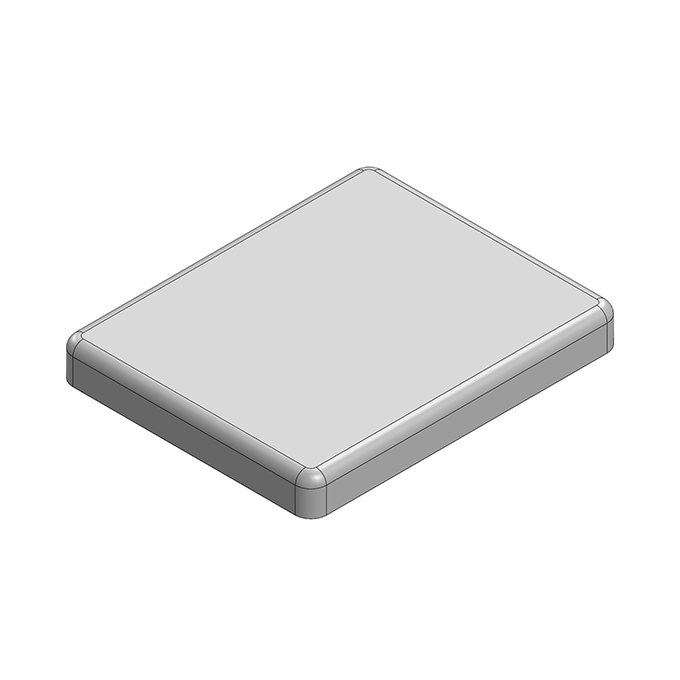

Get MS300-10S 30 x 24.4 x 3.5mm One-piece Drawn-Seamless RF Shield / EMI Shield	1-piece EMI/RFI Shield	30 mm	24.4 mm	3.5 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS300-10S-NS 30 x 24.4 x 3.5mm One-piece Drawn-Seamless RF Shield / EMI Shield	1-piece EMI/RFI Shield	30 mm	24.4 mm	3.5 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

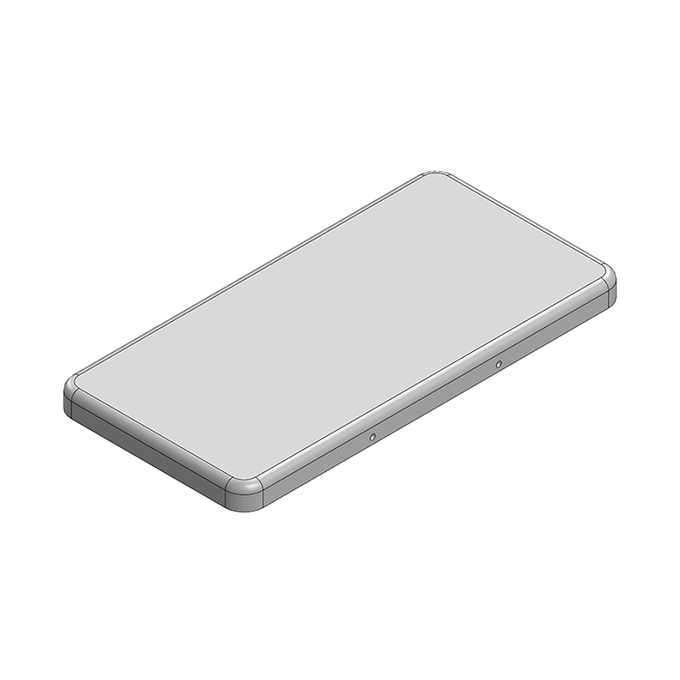

Get MS300-20C 30.4 x 15.2 x 1.8mm Two-piece Drawn-Seamless RF Shield/EMI Shield COVER	2-piece EMI/RFI Shield COVER	30.4 mm	15.2 mm	1.8 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS300-20C-NS 30.4 x 15.2 x 1.8mm Two-piece Drawn-Seamless RF Shield/EMI Shield COVER	2-piece EMI/RFI Shield COVER	30.4 mm	15.2 mm	1.8 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

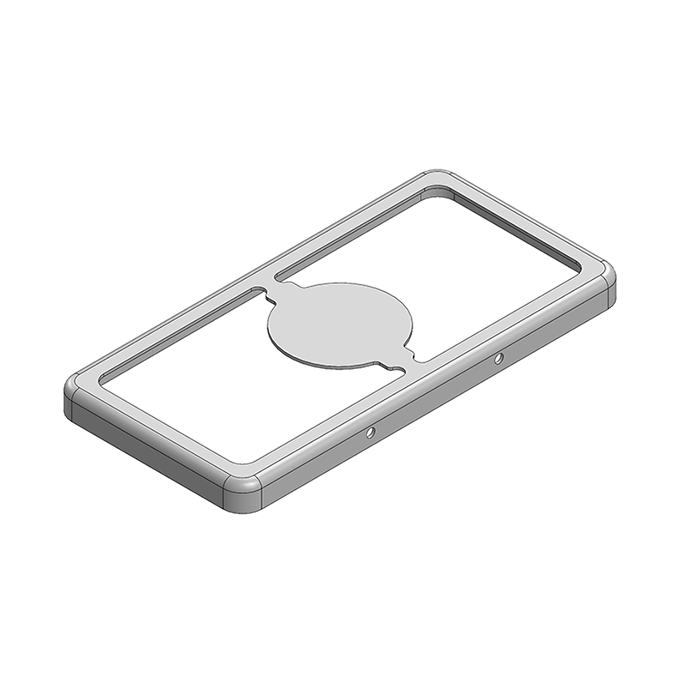

Get MS300-20F 30 x 14.8 x 2mm Two-piece Drawn-Seamless RF Shield/EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	30 mm	14.8 mm	2 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS300-20F-NS 30 x 14.8 x 2mm Two-piece Drawn-Seamless RF Shield/EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	30 mm	14.8 mm	2 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)
Get MS300-20S 30 x 14.8 x 2mm One-piece Drawn-Seamless RF Shield/EMI Shield	1-piece EMI/RFI Shield	30 mm	14.8 mm	2 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS300-20S-NS 30 x 14.8 x 2mm One-piece Drawn-Seamless RF Shield/EMI Shield	1-piece EMI/RFI Shield	30 mm	14.8 mm	2 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

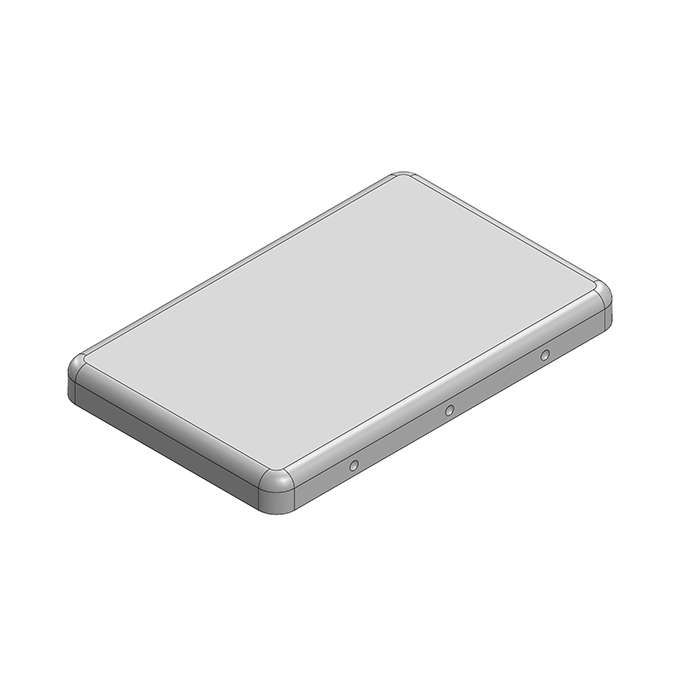

Get MS302-10C 30.8 x 19.5 x 2.7mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER	2-piece EMI/RFI Shield COVER	30.8 mm	19.5 mm	2.7 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS302-10C-NS 30.8 x 19.5 x 2.7mm Two-piece Drawn-Seamless RF Shield / EMI Shield COVER	2-piece EMI/RFI Shield COVER	30.8 mm	19.5 mm	2.7 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)

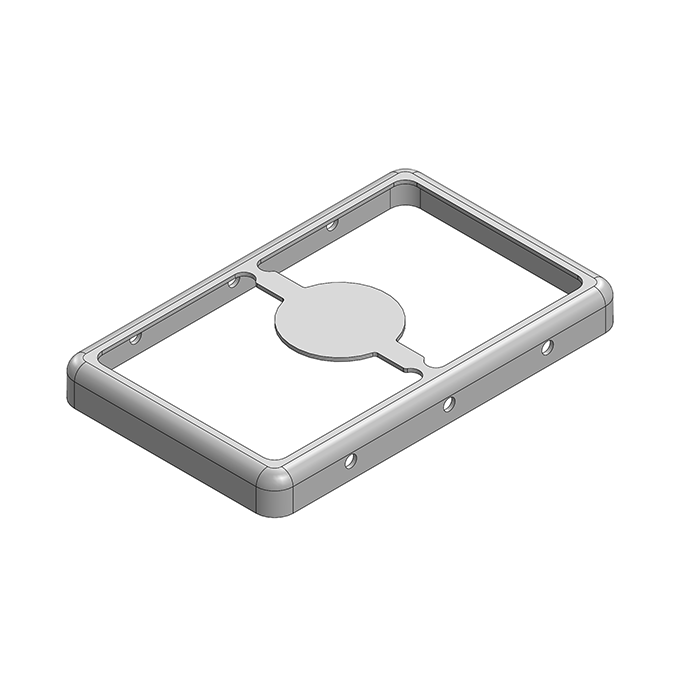

Get MS302-10F 30.2 x 18.9 x 3mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	30.2 mm	18.9 mm	3 mm	Non-Vented	Tin-Steel (CRS)	Tray	IL (Israel)
Get MS302-10F-NS 30.2 x 18.9 x 3mm Two-piece Drawn-Seamless RF Shield / EMI Shield FRAME	2-piece EMI/RFI Shield FRAME	30.2 mm	18.9 mm	3 mm	Non-Vented	Nickel-Silver	Tray	IL (Israel)
