822 RF Shields

MS Part #
Configuration
Length
Width
Height
Ventilation
Raw Material
Packaging
COO
MS Part # Configuration Length Width Height Ventilation Raw Material Packaging COO
MS110-10C Shield
2-piece EMI/RFI Shield COVER 11.6 mm 11.6 mm 2.8 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS110-10C-NS Shield
2-piece EMI/RFI Shield COVER 11.6 mm 11.6 mm 2.8 mm Non-Vented Nickel-Silver Tray IL (Israel)

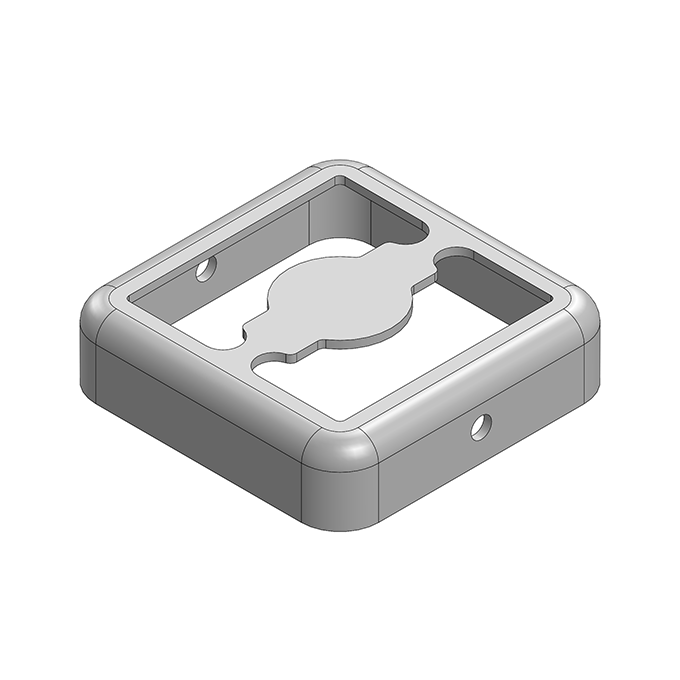

MS110-10F Shield
2-piece EMI/RFI Shield FRAME 11 mm 11 mm 2.8 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS110-10F-NS Shield
2-piece EMI/RFI Shield FRAME 11 mm 11 mm 2.8 mm Non-Vented Nickel-Silver Tray IL (Israel)

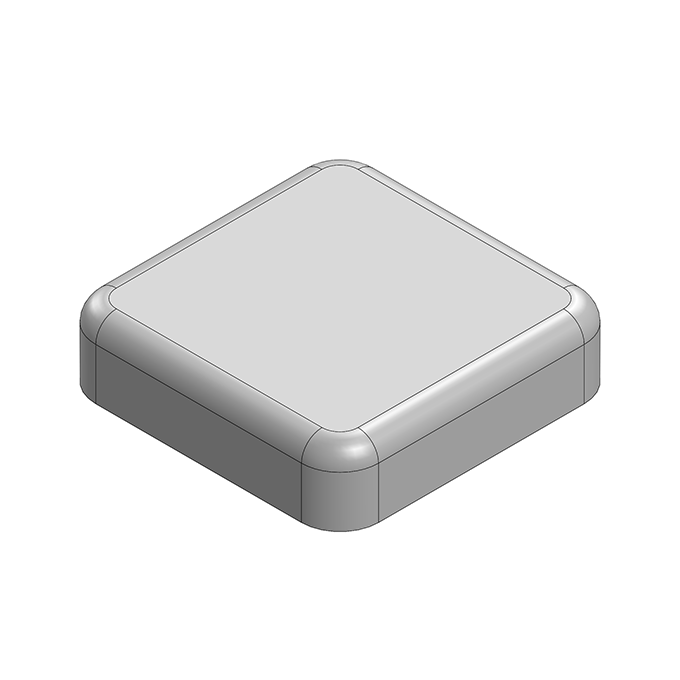

MS110-10S Shield
1-piece EMI/RFI Shield 11 mm 11 mm 2.8 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS110-10S-NS Shield
1-piece EMI/RFI Shield 11 mm 11 mm 2.8 mm Non-Vented Nickel-Silver Tray IL (Israel)

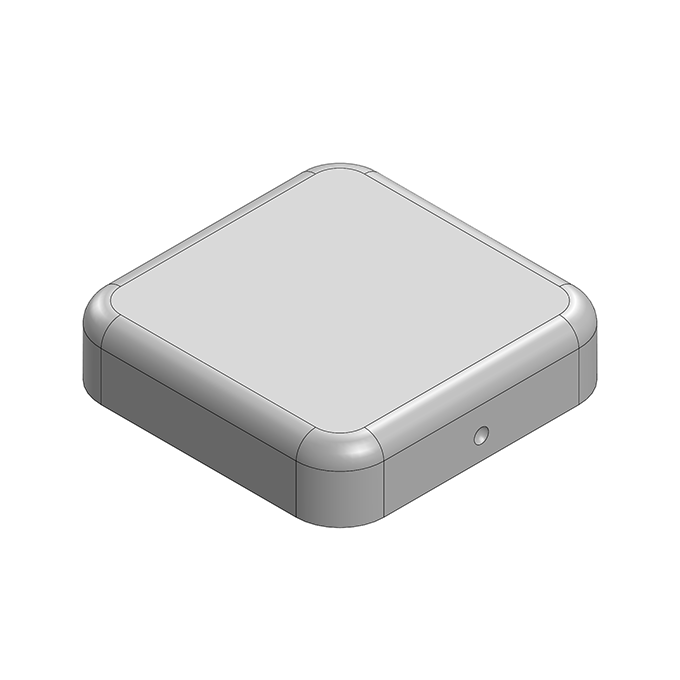

MS110-20C Shield
2-piece EMI/RFI Shield COVER 11.6 mm 11.6 mm 2.8 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS110-20C-NS Shield
2-piece EMI/RFI Shield COVER 11.6 mm 11.6 mm 2.8 mm Non-Vented Nickel-Silver Tray IL (Israel)

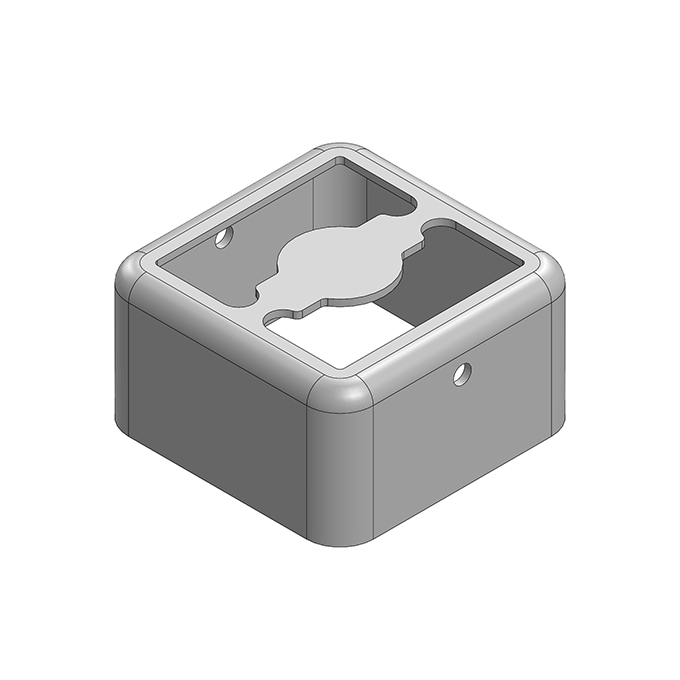

MS110-20F Shield
2-piece EMI/RFI Shield FRAME 11 mm 11 mm 6 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS110-20F-NS Shield
2-piece EMI/RFI Shield FRAME 11 mm 11 mm 6 mm Non-Vented Nickel-Silver Tray IL (Israel)

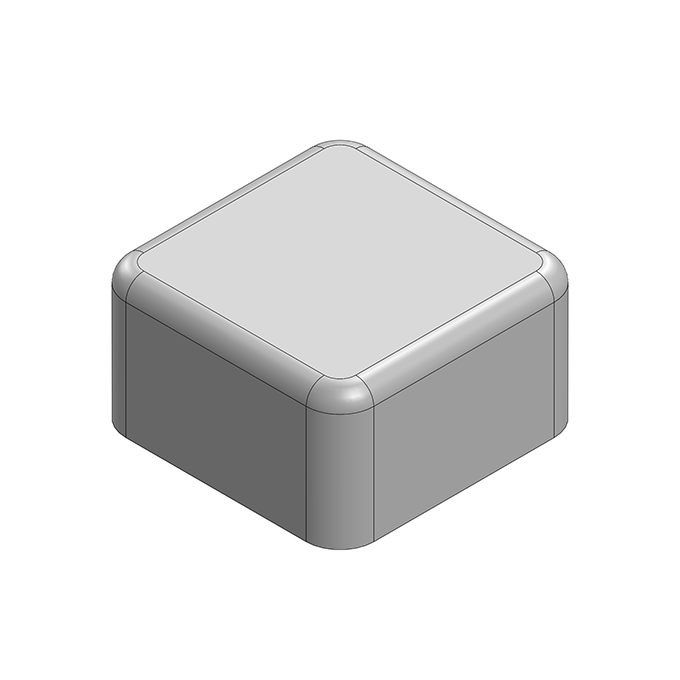

MS110-20S Shield
1-piece EMI/RFI Shield 11 mm 11 mm 6 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
MS110-20S-NS Shield
1-piece EMI/RFI Shield 11 mm 11 mm 6 mm Non-Vented Nickel-Silver Tray IL (Israel)
