822 RF Shields

MS Part #
Configuration
Length
Width
Height
Ventilation
Raw Material
Packaging
COO
MS Part # Configuration Length Width Height Ventilation Raw Material Packaging COO

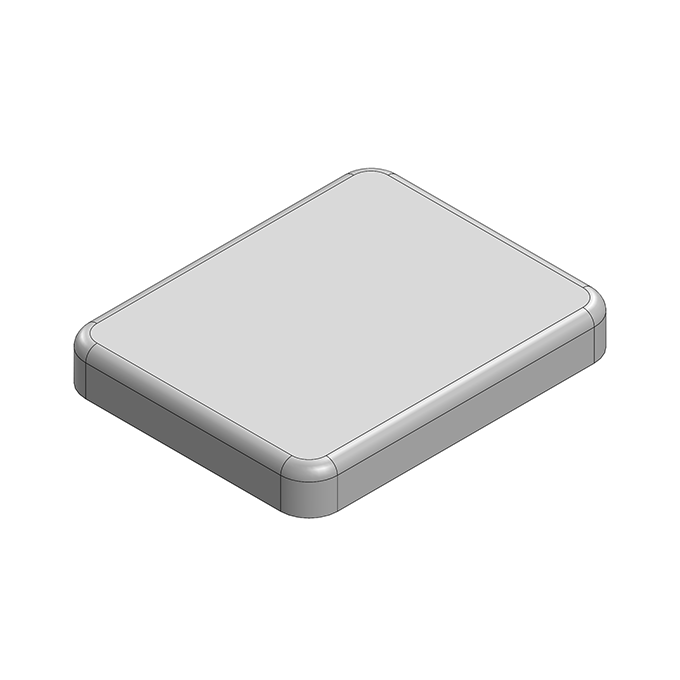

2-piece EMI/RFI Shield COVER 22.6 mm 19.9 mm 3 mm Vented Tin-Steel (CRS) Tray IL (Israel)
2-piece EMI/RFI Shield COVER 22.6 mm 19.9 mm 3 mm Vented Nickel-Silver Tray IL (Israel)

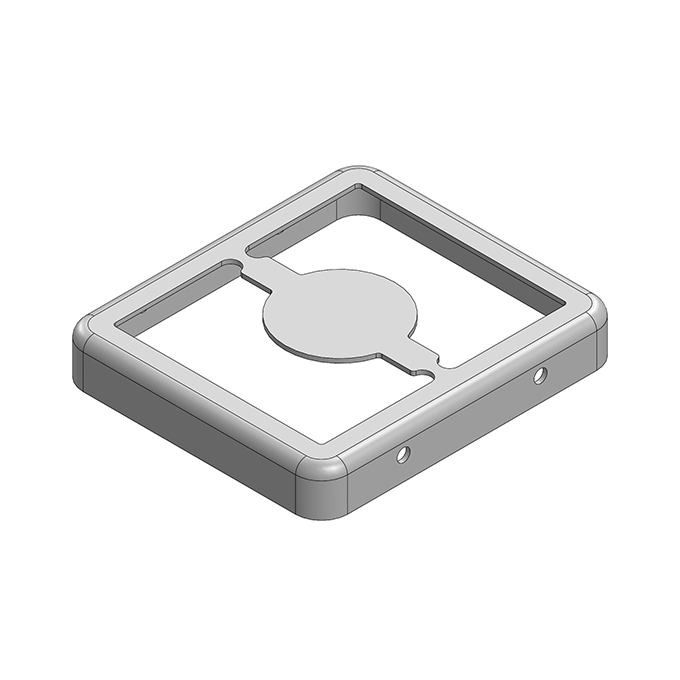

2-piece EMI/RFI Shield FRAME 22 mm 19.3 mm 3.3 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
2-piece EMI/RFI Shield FRAME 22 mm 19.3 mm 3.3 mm Non-Vented Nickel-Silver Tray IL (Israel)
1-piece EMI/RFI Shield 22 mm 19.3 mm 3.3 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
1-piece EMI/RFI Shield 22 mm 19.3 mm 3.3 mm Non-Vented Nickel-Silver Tray IL (Israel)

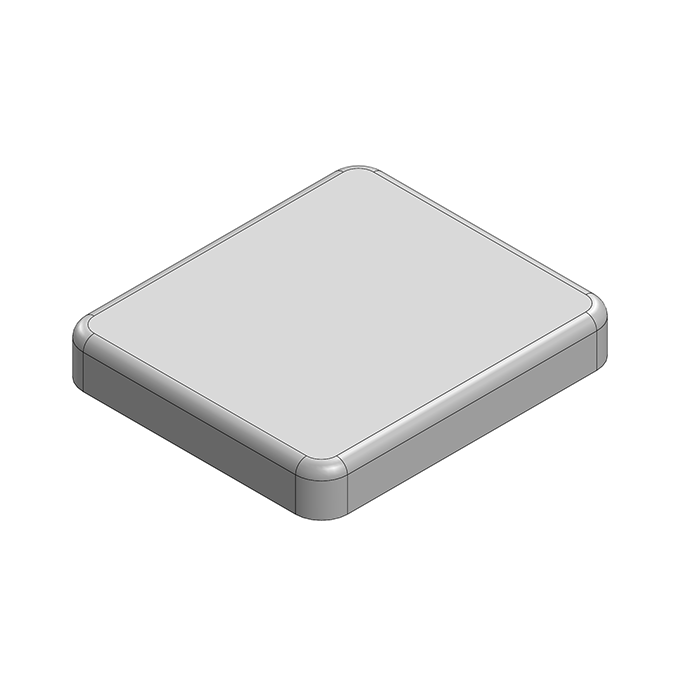

2-piece EMI/RFI Shield COVER 22.4 mm 18.1 mm 3 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
2-piece EMI/RFI Shield COVER 22.4 mm 18.1 mm 3 mm Non-Vented Nickel-Silver Tray IL (Israel)

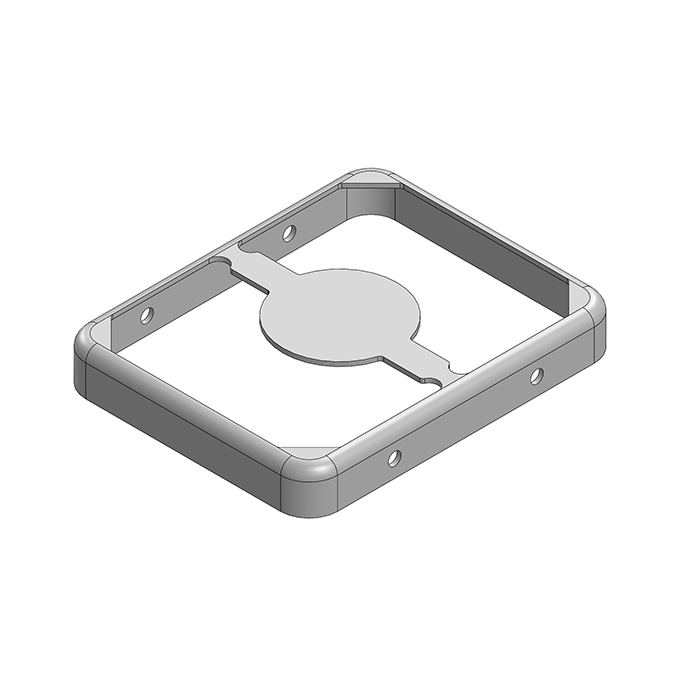

2-piece EMI/RFI Shield FRAME 22 mm 17.7 mm 3 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
2-piece EMI/RFI Shield FRAME 22 mm 17.7 mm 3 mm Non-Vented Nickel-Silver Tray IL (Israel)
1-piece EMI/RFI Shield 22 mm 17.7 mm 3 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
1-piece EMI/RFI Shield 22 mm 17.7 mm 3 mm Non-Vented Nickel-Silver Tray IL (Israel)
