822 RF Shields

MS Part #
Configuration
Length
Width
Height
Ventilation
Raw Material
Packaging
COO
MS Part # Configuration Length Width Height Ventilation Raw Material Packaging COO

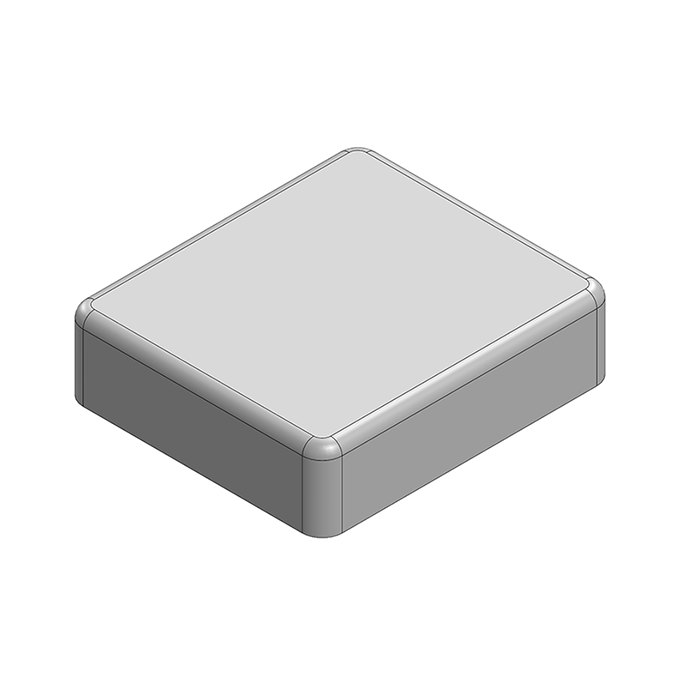

1-piece EMI/RFI Shield 20.6 mm 17.8 mm 3 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
1-piece EMI/RFI Shield 20.6 mm 17.8 mm 3 mm Non-Vented Nickel-Silver Tray IL (Israel)

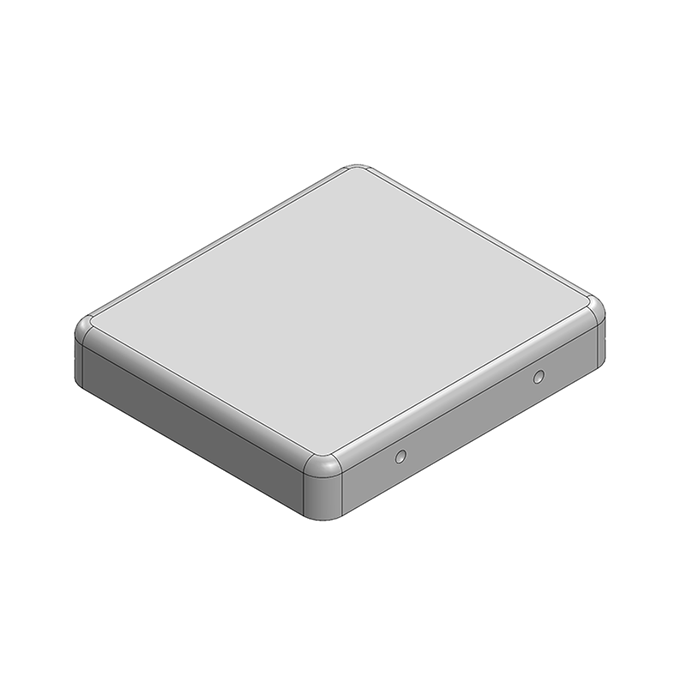

2-piece EMI/RFI Shield COVER 21.3 mm 18.8 mm 3.5 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
2-piece EMI/RFI Shield COVER 21.3 mm 18.8 mm 3.5 mm Non-Vented Nickel-Silver Tray IL (Israel)

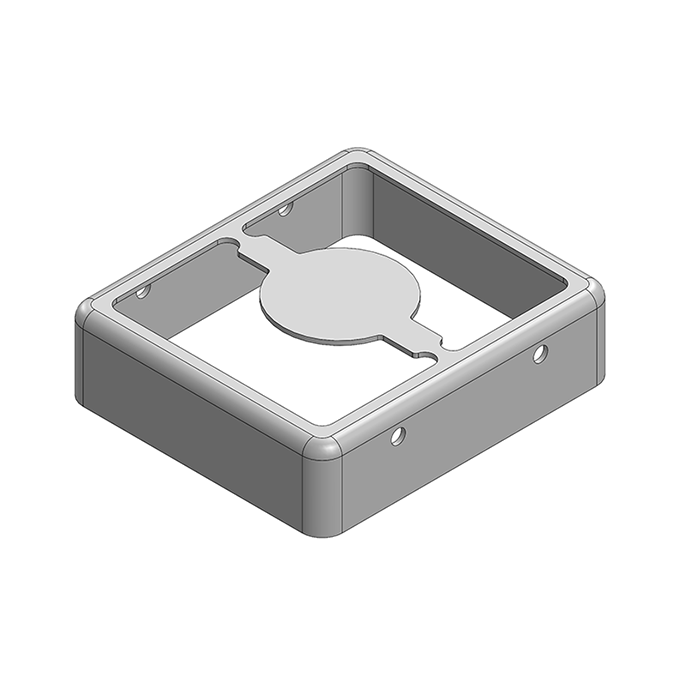

2-piece EMI/RFI Shield FRAME 20.7 mm 18.2 mm 5.5 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
2-piece EMI/RFI Shield FRAME 20.7 mm 18.2 mm 5.5 mm Non-Vented Nickel-Silver Tray IL (Israel)
1-piece EMI/RFI Shield 20.7 mm 18.2 mm 5.5 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
1-piece EMI/RFI Shield 20.7 mm 18.2 mm 5.5 mm Non-Vented Nickel-Silver Tray IL (Israel)
2-piece EMI/RFI Shield COVER 21.3 mm 15.7 mm 1.7 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
2-piece EMI/RFI Shield COVER 21.3 mm 15.7 mm 1.7 mm Non-Vented Nickel-Silver Tray IL (Israel)
2-piece EMI/RFI Shield FRAME 20.9 mm 15.3 mm 1.7 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
2-piece EMI/RFI Shield FRAME 20.9 mm 15.3 mm 1.7 mm Non-Vented Nickel-Silver Tray IL (Israel)
per page
