822 RF Shields

MS Part #
Configuration
Length
Width
Height
Ventilation
Raw Material
Packaging
COO
MS Part # Configuration Length Width Height Ventilation Raw Material Packaging COO

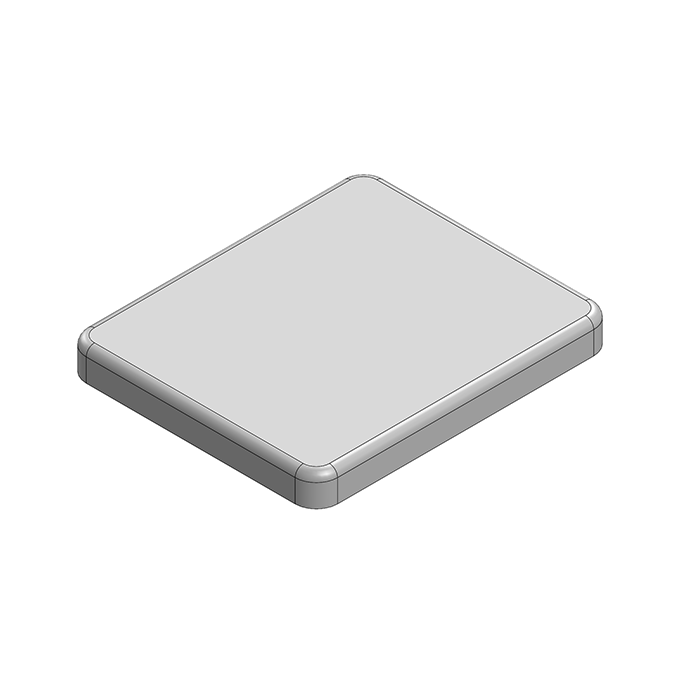

MS183-20S Shield
1-piece EMI/RFI Shield 18.3 mm 15.4 mm 1.9 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
1-piece EMI/RFI Shield 18.3 mm 15.4 mm 1.9 mm Non-Vented Nickel-Silver Tray IL (Israel)
2-piece EMI/RFI Shield COVER 19.4 mm 14.3 mm 1.7 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
2-piece EMI/RFI Shield COVER 19.4 mm 14.3 mm 1.7 mm Non-Vented Nickel-Silver Tray IL (Israel)
2-piece EMI/RFI Shield FRAME 19 mm 13.9 mm 2 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
2-piece EMI/RFI Shield FRAME 19 mm 13.9 mm 2 mm Non-Vented Nickel-Silver Tray IL (Israel)
1-piece EMI/RFI Shield 19 mm 13.9 mm 2 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
1-piece EMI/RFI Shield 19 mm 13.9 mm 2 mm Non-Vented Nickel-Silver Tray IL (Israel)
2-piece EMI/RFI Shield COVER 19.7 mm 18.8 mm 3.5 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
2-piece EMI/RFI Shield COVER 19.7 mm 18.8 mm 3.5 mm Non-Vented Nickel-Silver Tray IL (Israel)
2-piece EMI/RFI Shield FRAME 19.1 mm 18.2 mm 5 mm Non-Vented Tin-Steel (CRS) Tray IL (Israel)
2-piece EMI/RFI Shield FRAME 19.1 mm 18.2 mm 5 mm Non-Vented Nickel-Silver Tray IL (Israel)
